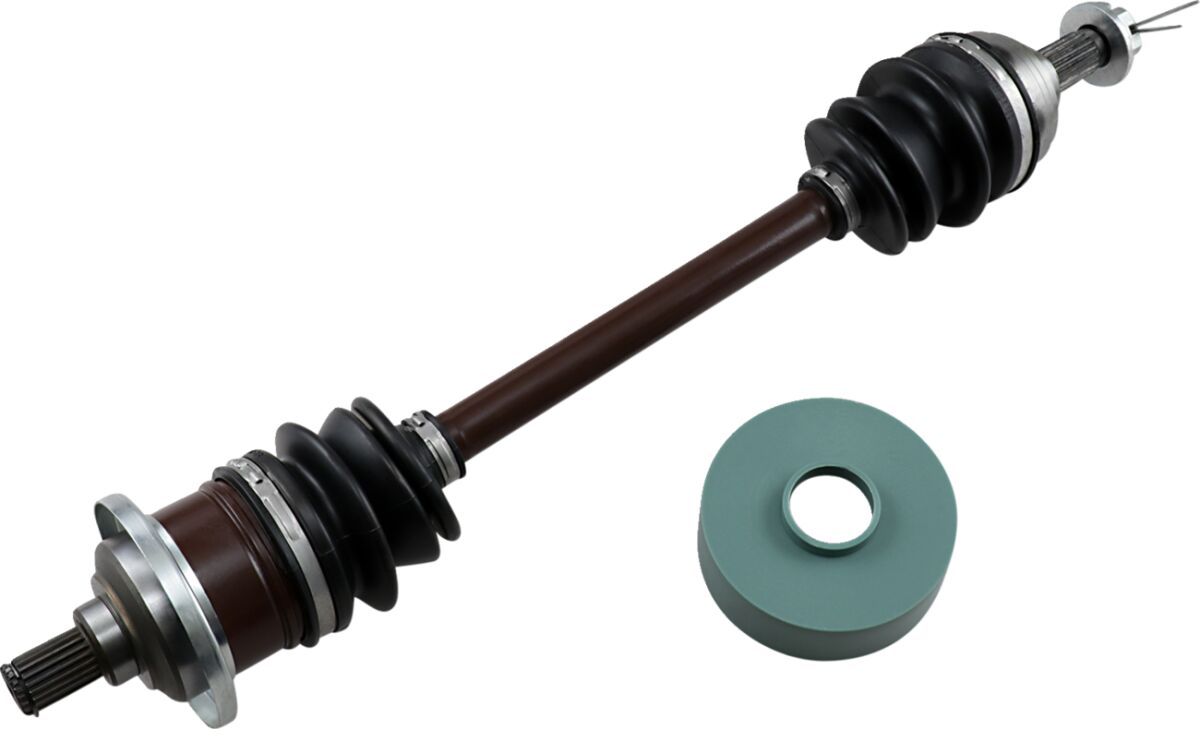

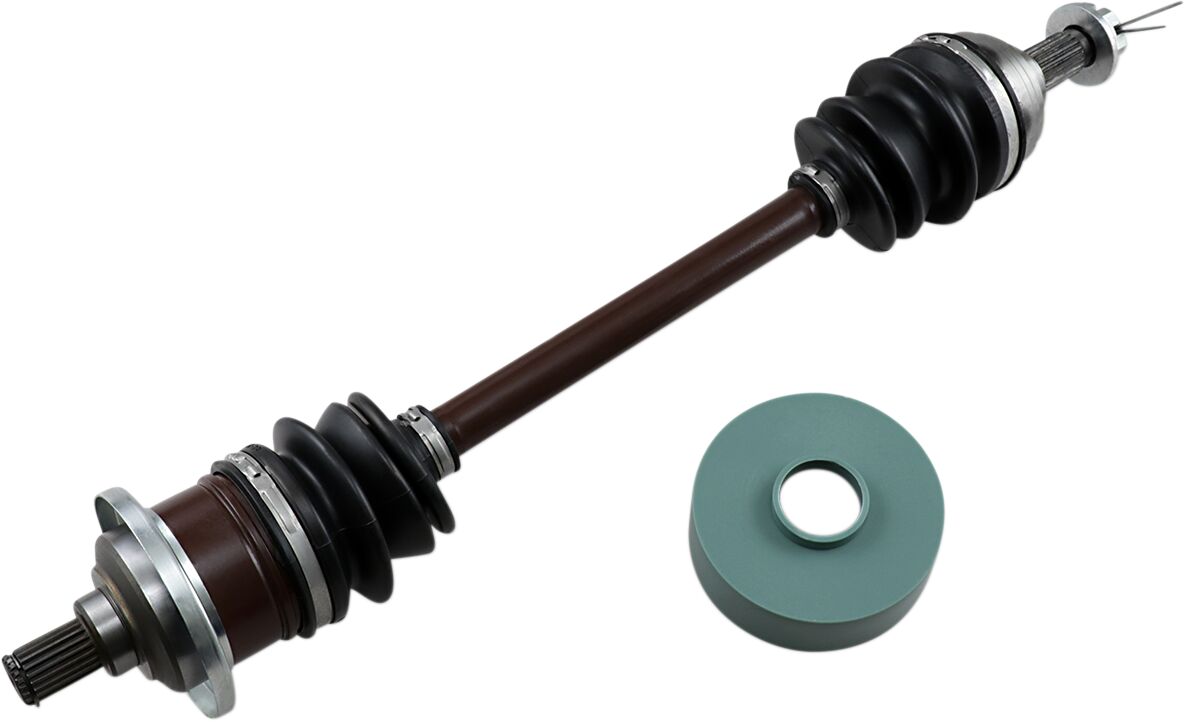

Complete Axle Assembly ARCTIC CAT (TEXTRON) — Selected Models; See Fitment
Our price £185.96
Price includes applicable VAT. Delivery calculated separately.
Choose the exact model and year to view its supplier application.
Product details
Complete Axle Assembly All internal precision-ground components are assembled using high-temperature, high load-bearing moly grease Fully assembled outboard and inboard joints installed on a 4340 chrome-moly steel axle bar Includes a spindle nut and washer (where applicable) Assembled using stainless steel low-profile clamps
Supplier reference: 02140976
Manufacturer reference: LM6-AC-8-244
Dimensions & specification
- Type
- Complete
- Units
- Each
- Product Name
- Axle
- Base Color
- Black
- Riding Style
- ATV
- Material
- Chromoly Steel
- Base Finish
- Chrome
- Color/Finish
- Black| Chrome
- Duty
- Standard
- Mounting Position
- Front Left| Front Right| Rear Left| Rear Right
Delivery & returns
UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.
The right part starts
with the right details.
Compare your model, year and exact variant, then check the number on your original part.
Vehicle fitment
All 31 supplier-listed applications. Match your complete model, year, position and any notes.
| Make | Model & variant | Year | Position | Vehicle ID | Variant | Market |
|---|---|---|---|---|---|---|
| ARCTIC CAT (TEXTRON) | 400 2X4 | 2002 | 36661 | FIS | AMERICA | |
| ARCTIC CAT (TEXTRON) | 400 2X4 | 2003 | 36665 | FIS | AMERICA | |
| ARCTIC CAT (TEXTRON) | 400 2X4 | 2003 | 36663 | FIS Auto | AMERICA | |
| ARCTIC CAT (TEXTRON) | 400 2X4 | 2004 | FRONT LEFT AXLE | 36667 | FIS | AMERICA |
| ARCTIC CAT (TEXTRON) | 400 2X4 | 2004 | FRONT LEFT AXLE | 36669 | FIS Auto | AMERICA |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2002 | Front Left Axle | 36679 | FIS | AMERICA |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2003 | Front Left Axle | 36685 | FIS | AMERICA |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2003 | Front Left Axle | 36683 | FIS Auto | AMERICA |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2004 | Front Left Axle | 36699 | Auto TBX | AMERICA |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2004 | Front Left Axle | 36695 | FIS | AMERICA |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2004 | Front Left Axle | 36691 | FIS Auto | AMERICA |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2006 | 36725 | FIS | AMERICA | |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2006 | 36721 | FIS Auto | AMERICA | |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2007 | 100635 | FIS Auto | AMERICA | |
| ARCTIC CAT (TEXTRON) | 400 4X4 | 2008 | 100639 | FIS Auto | AMERICA | |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2002 | Front Left Axle | 36797 | FIS | AMERICA |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2003 | Front Left Axle | 36809 | Auto TBX | AMERICA |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2003 | Front Left Axle | 36807 | Auto TRV | AMERICA |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2003 | Front Left Axle | 36805 | FIS | AMERICA |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2003 | Front Left Axle | 36803 | FIS Auto | AMERICA |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2004 | Front Left Axle | 36813 | Auto TBX | AMERICA |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2004 | Front Left Axle | 36811 | Auto TRV | AMERICA |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2004 | Front Left Axle | 36817 | FIS | AMERICA |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2004 | Front Left Axle | 36815 | FIS Auto | AMERICA |
| ARCTIC CAT (TEXTRON) | 500 4X4 | 2006 | 36831 | Auto TBX | AMERICA | |
| ARCTIC CAT (TEXTRON) | H1 400 4X4 | 2013 | 78313 | TRV Core | ALL | |
| ARCTIC CAT (TEXTRON) | H1 400 4X4 | 2014 | 84143 | TRV | ALL | |
| ARCTIC CAT (TEXTRON) | H1 650 4X4 | 2010 | 36913 | Mudpro | AMERICA | |
| ARCTIC CAT (TEXTRON) | V2 650 4X4 | 2004 | Front Right Axle | 36949 | AMERICA | |
| ARCTIC CAT (TEXTRON) | V2 650 4X4 | 2004 | Front Right Axle | 36947 | FIS | AMERICA |
| ARCTIC CAT (TEXTRON) | V2 650 4X4 | 2004 | Front Right Axle | 36945 | SE | AMERICA |
