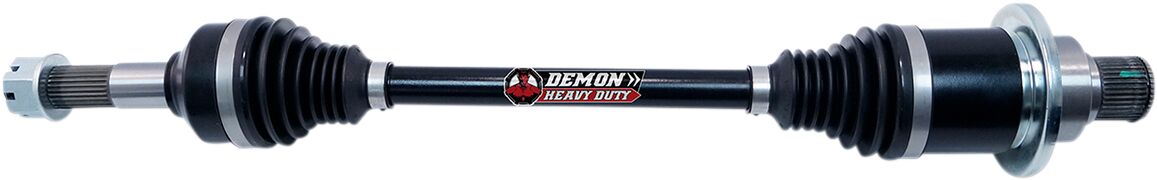

Complete Heavy-Duty Axle Yamaha — Selected Models; See Fitment

DEMONPart no. PAXL-1102HD

Our price £189.67

RRP £199.64Save £9.97 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

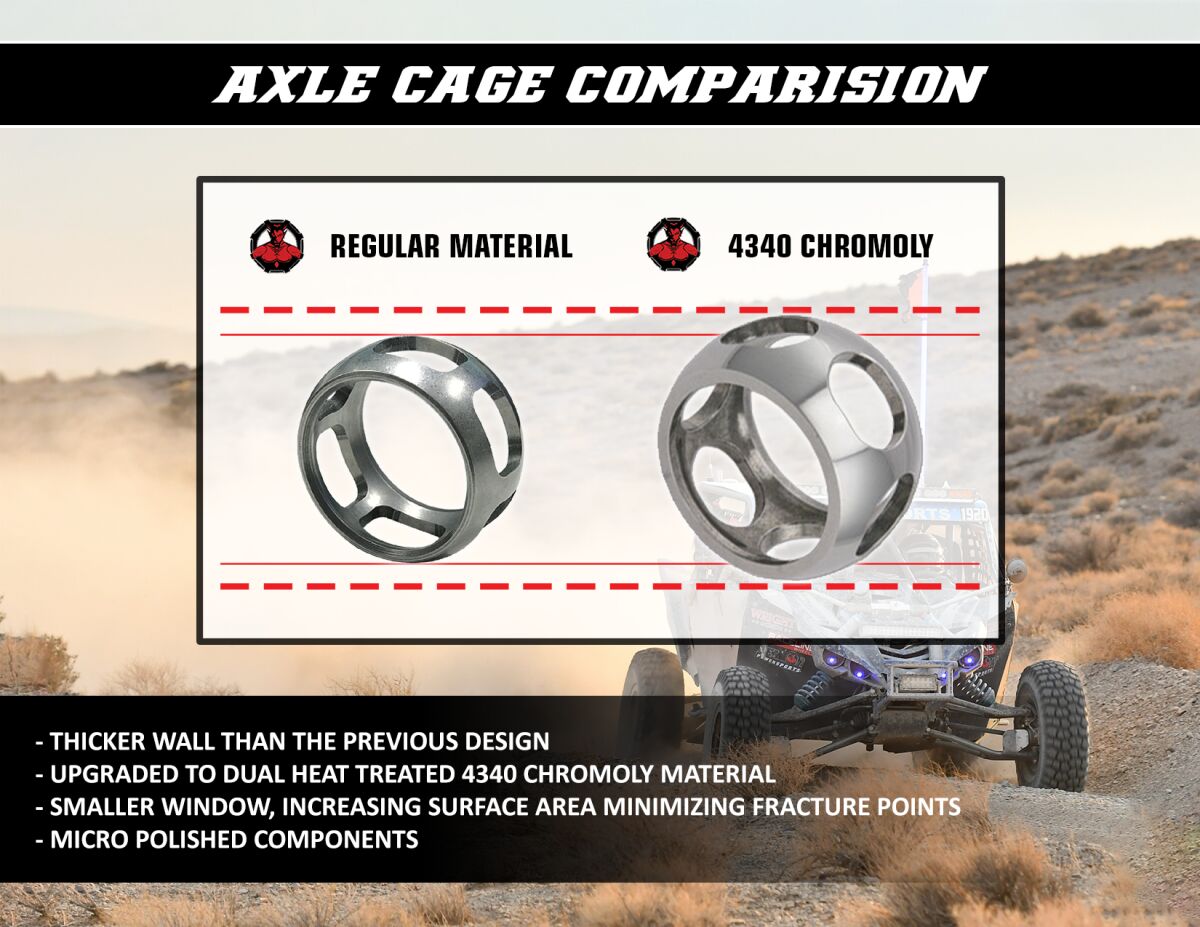

Complete Heavy-Duty Axle Wide articulation angles and dual plunge design prevents the axle from binding Can fit 2", 3", 4" and 5" bracket lifts/portal gear lifts/a-arms of particular brands 10% - 15% increase in CV joint size compared to regular joints 15% - 20% increase in diameter compared to OEM axles Dual heat treated high-strength chromoly steel shafts Thermoplastic polyester elastomer (TPEE) boots Boots packed with high-load molybdenum grease Inner cage made up of 4340 chromoly material Precision CNC machined

Supplier reference: 02141244
Manufacturer reference: PAXL-1102HD

Dimensions & specification
Base Color
Black
Type
Complete
Units
Each
Base Finish
Raw
Color/Finish
Black| Raw
Mounting Position
Rear Left
Duty
Heavy-Duty
Riding Style
UTV
Material
Chromoly Steel
Product Name
Axle
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 43 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for PAXL-1102HD
MakeModel & variantYearPositionVehicle typeVehicle IDVariantMarketNotes
YAMAHAYXR 450 F 4X42007Rear Left2P528601RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 450 F 4X42008Rear Left2P528607RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 450 F 4X42009Rear Left2P528613RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 450 F SE 4X42007Rear Left2P528605Rhino Special EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 450 F SP 4X42008Rear Left2P528611Rhino Special EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 450 FA 4X42006Rear Left2P528597RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 450 FH 4X42007Rear Left2P528603Rhino HunterAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 450 FH 4X42008Rear Left2P528609Rhino HunterAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 450 FH 4X42009Rear Left2P528615Rhino HunterAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 F 4X42007Rear Left5UG29937RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 F DU 4X42007Rear Left5UG29943Rhino Ducks Unlimited EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 F EX 4X42007Rear Left5UG29945Rhino Exploring EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 F SE 4X42007Rear Left5UG29939Rhino Special EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 F SP 4X42007Rear Left5UG29941Rhino Sport EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 FA 4X42004Rear Left5UG29921RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 FA 4X42005Rear Left5UG29925RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 FA 4X42006Rear Left5UG29929RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 FA EX 4X42006Rear Left5UG29935Rhino Exploring EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 FA SE 4X42006Rear Left5UG29933Rhino Special EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 660 FH 4X42007Rear Left5UG29947Rhino Hunter Hardwoods CamoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F 4X42008Rear Left5B430041RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F 4X42009Rear Left5B430053RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F 4X42010Rear Left5B4206582RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F 4X42011Rear Left5B450099RhinoAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F 4X42012Rear Left68241RhinoALLINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F 4X42013Rear Left79395RhinoALLINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F DU 4X42008Rear Left5B430043Rhino Ducks Unlimited EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F DU 4X42009Rear Left5B430055Rhino Ducks Unlimited EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SE 4X42008Rear Left5B430047Rhino Special EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SE 4X42012Rear Left68239Rhino SEEUROPEINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SE 4X42013Rear Left79397Rhino SEEUROPEINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SP 4X42008Rear Left5B430051Rhino Sport EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SP 4X42009Rear Left5B430061Rhino Sport EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SP 4X42011Rear Left5B450101Rhino Sport EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SP 4X42012Rear Left1RB67847Rhino Sport EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SP 4X42013Rear Left1RB79295Rhino Sport EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SP2 4X42008Rear Left5B430049Rhino Special Edition 2AMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 F SP2 4X42009Rear Left5B430059Rhino Sport Edition 2AMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 FH 4X42008Rear Left5B430045Rhino HunterAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 FH 4X42009Rear Left5B430057Rhino HunterAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 FH 4X42011Rear Left5B450103Rhino HunterAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 FH 4X42012Rear Left1RB67851Rhino Hunter RealtreeAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
YAMAHAYXR 700 FH 4X42013Rear Left1RB79293Rhino Hunter EditionAMERICAINBOARD BOOT - 02130795;OUTBOARD BOOT - 02130798
