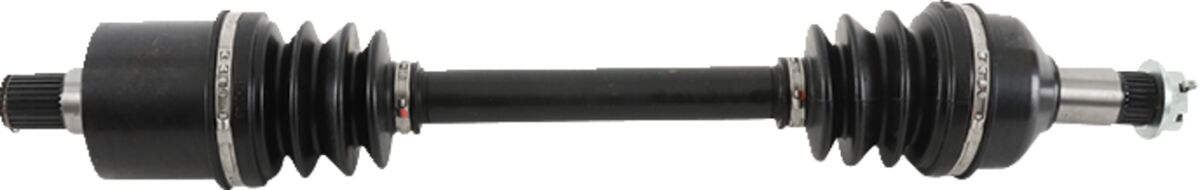

Complete Axle Assembly ARCTIC CAT (TEXTRON) — Selected Models; See Fitment
Our price £185.96
Price includes applicable VAT. Delivery calculated separately.
Choose the exact model and year to view its supplier application.
Product details
Complete Axle Assembly All internal precision-ground components are assembled using high-temperature, high load-bearing moly grease Fully assembled outboard and inboard joints installed on a 4340 chrome-moly steel axle bar Includes a spindle nut and washer (where applicable) Assembled using stainless steel low-profile clamps
Supplier reference: 02142056
Manufacturer reference: LM6-AC-8-349
Dimensions & specification
- Duty
- Standard
- Base Color
- Black
- Color/Finish
- Black| Chrome
- Material
- Chromoly Steel| Stainless Steel
- Product Name
- Axle
- Base Finish
- Chrome
- Units
- Each
- Riding Style
- UTV
- Type
- Complete
- Mounting Position
- Rear Left| Rear Right
Delivery & returns
UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.
The right part starts
with the right details.
Compare your model, year and exact variant, then check the number on your original part.
Vehicle fitment
All 31 supplier-listed applications. Match your complete model, year, position and any notes.
| Make | Model & variant | Year | Position | Vehicle ID | Variant | Market |
|---|---|---|---|---|---|---|
| ARCTIC CAT (TEXTRON) | WILDCAT 700 EFI 4X4 | 2014 | Rear | 88009 | Trail | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT 700 EFI 4X4 | 2014 | Rear | 88011 | Trail XT | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2015 | Rear | 90229 | AMERICA | |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2015 | Rear | 90225 | LTD EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2015 | Rear | 90227 | XT | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2016 | Rear | 96277 | AMERICA | |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2016 | Rear | 96281 | LTD EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2016 | Rear | 96279 | XT EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2017 | Rear | 101303 | LTD EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2017 | Rear | 101305 | XT EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2018 | Rear | 107055 | LTD EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2018 | Rear | 107053 | XT EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2019 | Rear | 116575 | LTD EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT SPORT 700 EFI 4X4 | 2019 | Rear | 116573 | XT EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2014 | Rear | 90221 | AMERICA | |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2014 | Rear | 90217 | XT | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2015 | Rear | 90223 | AMERICA | |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2015 | Rear | 90215 | LTD EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2015 | Rear | 90219 | XT | ALL |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2016 | Rear | 96283 | AMERICA | |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2016 | Rear | 96287 | SE EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2016 | Rear | 96285 | XT EPS | ALL |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2017 | Rear | 101301 | AMERICA | |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2017 | Rear | 101297 | LTD EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2017 | Rear | 101299 | XT EPS | ALL |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2018 | Rear | 107047 | AMERICA | |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2018 | Rear | 107051 | LTD EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2018 | Rear | 107049 | XT EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2019 | Rear | 116577 | AMERICA | |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2019 | Rear | 116581 | LTD EPS | AMERICA |
| ARCTIC CAT (TEXTRON) | WILDCAT TRAIL 700 EFI 4X4 | 2019 | Rear | 116579 | XT EPS | AMERICA |
