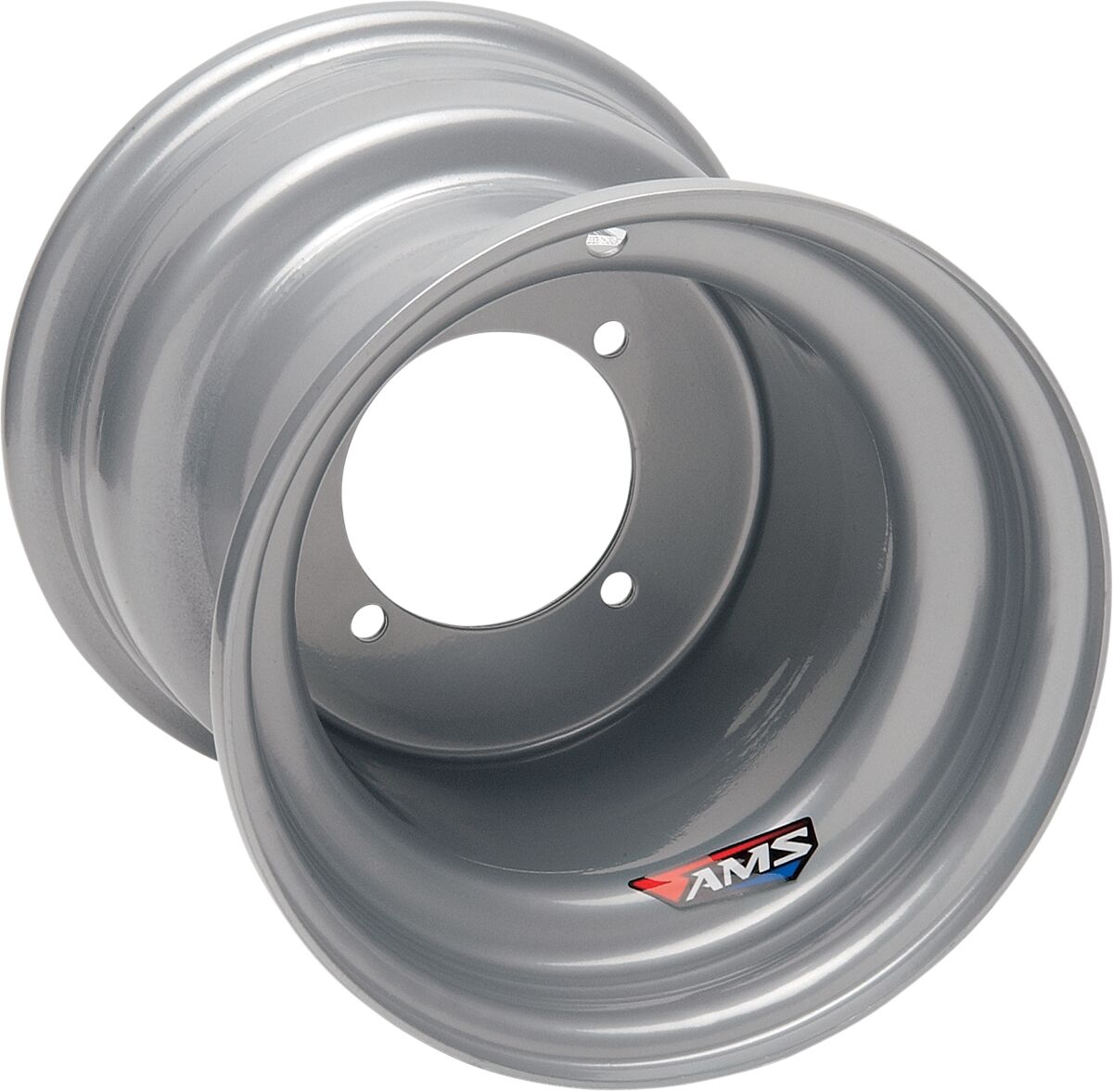

Steel Replacement Wheel ARCTIC CAT (TEXTRON); Can-Am; Honda; KTM; Polaris; SUZUKI; Yamaha — Selected Models; See Fitment

AMSPart no. 9913-697

Our price £44.42

RRP £46.75Save £2.33 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

Steel Replacement Wheel General replacement steel wheels for many ATV applications High-quality wheels at affordable prices Durable silver finish

Supplier reference: 02310004
Manufacturer reference: 9913-697

Dimensions & specification
Material
Steel
Base Finish
Chrome
Model
Large Bell Design
Units
Each
Product Name
Wheel
Recommended Valve Stem Diameter
15 mm
Bolt Hole Pattern
4/110
Load Capacity
143 kg (315 lb)
Recommended Valve Stem Material
Rubber, Copper Stem, Nylon Cap
Rim Width
9"
Type
Spun
Valve Stem Installed
None
Riding Style
ATV
Recommended Valve Stem Length
34 mm/22 mm
Valve Stem Core Torque Spec
3 lb/in - 4 lb/in
Size
9x9
Rim Diameter
9"
Base Color
Silver
Load Capacity Imperial
315 lb
Recommended Valve Stem
TR-412
Wheel Offset
3+6
Color/Finish
Chrome| Silver
Mounting Position
Rear
Load Capacity Metric
143 kg
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 273 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for 9913-697
MakeModel & variantYearPositionVehicle typeVehicle IDVariantMarket
ARCTIC CAT (TEXTRON)400 2X42004Rear36753DVXALL
ARCTIC CAT (TEXTRON)400 2X42005Rear36755DVXALL
ARCTIC CAT (TEXTRON)400 2X42006Rear36757DVXALL
ARCTIC CAT (TEXTRON)400 2X42007Rear36761DVXALL
ARCTIC CAT (TEXTRON)400 2X42008Rear36765DVXALL
CAN AM (BRP)DS 450 EFI 2x42008Rear36315ALL
CAN AM (BRP)DS 450 EFI 2x42008Rear36317XALL
CAN AM (BRP)DS 450 EFI 2x42009Rear36319ALL
CAN AM (BRP)DS 450 EFI 2x42009Rear36323MXCALL
CAN AM (BRP)DS 450 EFI 2x42009Rear36321X XCALL
CAN AM (BRP)DS 450 EFI 2x42010Rear36325ALL
CAN AM (BRP)DS 450 EFI 2x42010Rear36329MXCALL
CAN AM (BRP)DS 450 EFI 2x42010Rear36327X XCALL
CAN AM (BRP)DS 450 EFI 2x42011Rear50119ALL
CAN AM (BRP)DS 450 EFI 2x42011Rear50121X MxALL
CAN AM (BRP)DS 450 EFI 2x42011Rear50123X XCAMERICA
CAN AM (BRP)DS 450 EFI 2x42012Rear67725ALL
CAN AM (BRP)DS 450 EFI 2x42012Rear67729X MxAMERICA
CAN AM (BRP)DS 450 EFI 2x42012Rear67727X XCAMERICA
CAN AM (BRP)DS 450 EFI 2x42013Rear205791ALL
CAN AM (BRP)DS 450 EFI 2x42013Rear78441X MxAMERICA
CAN AM (BRP)DS 450 EFI 2x42014Rear84257AMERICA
CAN AM (BRP)DS 450 EFI 2x42014Rear84259X MxAMERICA
CAN AM (BRP)DS 450 EFI 2x42014Rear84261X XCAMERICA
CAN AM (BRP)DS 450 EFI 2x42015Rear90461AMERICA
CAN AM (BRP)DS 450 EFI 2x42015Rear90463X MxAMERICA
CAN AM (BRP)DS 450 EFI 2x42015Rear90465X XCAMERICA
HONDAATC 200 X1986Rear89291ALL
HONDAATC 200 X1987Rear89293ALL
HONDAATC 250 ES1985Rear89307Big RedALL
HONDAATC 250 ES1986Rear89311Big RedALL
HONDAATC 250 ES1987Rear89315Big RedALL
HONDAATC 250 R1981Rear89295ALL
HONDAATC 250 R1982Rear89297ALL
HONDAATC 250 R1983Rear89299ALL
HONDAATC 250 R1984Rear89301ALL
HONDAATC 350 X1985Rear89327ALL
HONDAATC 350 X1986Rear89329ALL
HONDATRX 250 EX2001Rear8377SportraxALL
HONDATRX 250 EX2002Rear8379SportraxALL
HONDATRX 250 EX2003Rear8381SportraxALL
HONDATRX 250 EX2004Rear8383SportraxALL
HONDATRX 250 EX2005Rear8385SportraxALL
HONDATRX 250 EX2006Rear8389SportraxALL
HONDATRX 250 EX2007Rear8393SportraxALL
HONDATRX 250 EX2008Rear8407SportraxALL
HONDATRX 250 R1986Rear85091AMERICA
HONDATRX 250 R1987Rear85093AMERICA
HONDATRX 250 R1988Rear85095AMERICA
HONDATRX 250 R1989Rear85097AMERICA
HONDATRX 3001989Rear96561FourtraxALL
HONDATRX 3001990Rear8563FourtraxALL
HONDATRX 3001991Rear8565FourtraxALL
HONDATRX 3001992Rear8567FourtraxALL
HONDATRX 3001993Rear8569FourtraxALL
HONDATRX 3001994Rear8571FourtraxALL
HONDATRX 3001995Rear8573FourtraxALL
HONDATRX 3001996Rear8575FourtraxALL
HONDATRX 3001997Rear8577FourtraxALL
HONDATRX 3001998Rear8579FourtraxALL
HONDATRX 3001999Rear8581FourtraxALL
HONDATRX 3002000Rear8583FourtraxALL
HONDATRX 400 EX1999Rear96547FourtraxALL
HONDATRX 400 EX2000Rear8843FourtraxALL
HONDATRX 400 EX2001Rear8845FourtraxALL
HONDATRX 400 EX2002Rear8847SportraxALL
HONDATRX 400 EX2003Rear8849SportraxALL
HONDATRX 400 EX2004Rear8851SportraxALL
HONDATRX 400 EX2005Rear8853SportraxALL
HONDATRX 400 EX2006Rear8867SportraxALL
HONDATRX 400 EX2007Rear8865SportraxALL
HONDATRX 400 EX2008Rear8871SportraxALL
HONDATRX 400 FA2004Rear8831Fourtrax Rancher ATALL
HONDATRX 400 FA2005Rear8855Fourtrax Rancher ATALL
HONDATRX 400 FA2006Rear8861Fourtrax Rancher ATALL
HONDATRX 400 FA2007Rear8863Fourtrax Rancher ATALL
HONDATRX 400 FA2008Rear8869Fourtrax Rancher ATALL
HONDATRX 450 ES1998Rear9033Fourtrax Foreman ESALL
HONDATRX 450 ES1999Rear9035Fourtrax Foreman ESALL
HONDATRX 450 ES2000Rear9041Fourtrax Foreman ESALL
HONDATRX 450 ES2001Rear9043Fourtrax Foreman ESALL
HONDATRX 450 FE2002Rear9047Fourtrax Foreman ESALL
HONDATRX 450 FE2003Rear9037Fourtrax Foreman ESALL
HONDATRX 450 FE2004Rear9039Fourtrax Foreman ESALL
HONDATRX 450 FM2002Rear9057Fourtrax Foreman SALL
HONDATRX 450 FM2003Rear9059Fourtrax Foreman SALL
HONDATRX 450 FM2004Rear9061Fourtrax Foreman SALL
HONDATRX 450 R2004Rear9045SportraxALL
HONDATRX 450 R2005Rear9063SportraxALL
HONDATRX 450 R2006Rear9067Sportrax K-StartALL
HONDATRX 450 R2007Rear9075Sportrax K-StartALL
HONDATRX 450 R2008Rear9077Sportrax K-StartALL
HONDATRX 450 R2009Rear9079Sportrax K-StartALL
HONDATRX 450 S1998Rear9049Fourtrax Foreman SALL
HONDATRX 450 S1999Rear9051Fourtrax Foreman SALL
HONDATRX 450 S2000Rear9053Fourtrax Foreman SALL
HONDATRX 450 S2001Rear9055Fourtrax Foreman SALL
KTMSX 450 ATV2008Rear17423ALL
KTMSX 450 ATV2009Rear17425ALL
KTMSX 450 ATV2010Rear17427ALL
KTMSX 450 ATV2011Rear67653AMERICA
KTMSX 450 ATV2012Rear70437AMERICA
KTMSX 505 ATV2009Rear17523ALL
KTMSX 505 ATV2010Rear17525ALL
KTMSX 505 ATV2011Rear67651ALL
KTMSX 505 ATV2012Rear70429ALL
KTMSX 505 ATV2013Rear81527ALL
KTMXC 450 ATV2008Rear17429ALL
KTMXC 450 ATV2009Rear17431ALL
KTMXC 450 ATV2010Rear17433ALL
KTMXC 450 ATV2011Rear67655AMERICA
KTMXC 450 ATV2012Rear70435AMERICA
KTMXC 525 ATV2008Rear17605EUROPE
KTMXC 525 ATV2009Rear17607EUROPE
KTMXC 525 ATV2010Rear17609EUROPE
KTMXC 525 ATV2011Rear67649ALL
KTMXC 525 ATV2012Rear70427ALL
KTMXC 525 ATV2013RearKTM ATV81529ALL
POLARISOUTLAW 450 MXR2009RearGJ4535739ALL
POLARISOUTLAW 450 MXR2010RearGJ4535741ALL
POLARISOUTLAW 450 S2008RearGJ4535737ALL
POLARISOUTLAW 5252007RearGP5235941ALL
POLARISOUTLAW 525 IRS2008RearGP5235945ALL
POLARISOUTLAW 525 IRS2009RearGP5235949ALL
POLARISOUTLAW 525 IRS2010RearGP5235953ALL
POLARISOUTLAW 525 IRS2011RearGP5253653ALL
POLARISOUTLAW 525 S2008RearGJ5235943ALL
POLARISOUTLAW 525 S2009RearGJ5235947ALL
POLARISOUTLAW 525 S2010RearGJ5235951ALL
POLARISPREDATOR 500 2X42003RearGJ5035771ALL
POLARISPREDATOR 500 2X42004RearGJ5035773ALL
POLARISPREDATOR 500 2X42005RearGJ5035775ALL
POLARISPREDATOR 500 2X42006RearGJ5035777ALL
POLARISPREDATOR 500 2X42007RearGJ5035779ALL
POLARISPREDATOR 500 2X42008RearGJ5035781ALL
SUZUKILT-R 450 2X42006RearAL41A21119QuadracerALL
SUZUKILT-R 450 2X42007RearAL41A21121QuadracerALL
SUZUKILT-R 450 2X42008RearAL41A21123QuadracerALL
SUZUKILT-R 450 2X42009RearAL41A21125QuadracerALL
SUZUKILT-R 450 2X42010RearAL41A21127QuadracerALL
SUZUKILT-R 450 2X42011RearAL41A55509QuadracerALL
SUZUKILT-Z 250 2X42004RearAJ4AA20295QuadsportALL
SUZUKILT-Z 250 2X42005RearAJ4AA20297QuadsportALL
SUZUKILT-Z 250 2X42006RearAJ4AA20299QuadsportALL
SUZUKILT-Z 250 2X42007RearAJ4AA20301QuadsportALL
SUZUKILT-Z 250 2X42008RearAJ4AA20303QuadsportALL
SUZUKILT-Z 250 2X42009RearAJ4AA20305QuadsportALL
SUZUKILT-Z 250 2X42010RearAJ4AA20307QuadsportALL
SUZUKILT-Z 250 2X42011RearAJ4AA55503QuadsportALL
SUZUKILT-Z 400 2X42003RearAK47A20971QuadsportALL
SUZUKILT-Z 400 2X42004RearAK47A20969QuadsportALL
SUZUKILT-Z 400 2X42005RearAK47A20973QuadsportALL
SUZUKILT-Z 400 2X42006RearAK47A20975QuadsportALL
SUZUKILT-Z 400 2X42007RearAK47A20977QuadsportALL
SUZUKILT-Z 400 2X42008RearAK47A20979QuadsportALL
SUZUKILT-Z 400 2X42009RearAK4AA20981QuadsportALL
SUZUKILT-Z 400 2X42010RearAK4AA20983QuadsportALL
SUZUKILT-Z 400 2X42011RearAK4AA55501QuadsportALL
SUZUKILT-Z 400 2X42012RearAK4AA70695QuadsportALL
SUZUKILT-Z 400 2X42013RearAK4AA81749QuadsportALL
SUZUKILT-Z 400 2X42014RearAK4AA86743QuadsportALL
SUZUKILT-Z 400 2X42015RearAK4AA91035QuadsportALL
SUZUKILT-Z 400 2X42016RearAK4AA97945QuadsportALL
SUZUKILT-Z 400 2X42017RearAK4AA122968QuadsportALL
SUZUKILT-Z 400 2X42018RearAK4AA122971QuadsportALL
YAMAHAYFM 250 R2008Rear4D327533RaptorALL
YAMAHAYFM 250 R2009Rear4D327539RaptorALL
YAMAHAYFM 250 R2010Rear4D327545RaptorALL
YAMAHAYFM 250 R2011Rear4D350083RaptorALL
YAMAHAYFM 250 R2012Rear4D368213RaptorALL
YAMAHAYFM 250 R2013Rear4D368255RaptorALL
YAMAHAYFM 250 RSE2009Rear4D327541Raptor Special EditionALL
YAMAHAYFM 250 RSE22009Rear4D327543Raptor Special Edition 2ALL
YAMAHAYFM 250 RSP2008Rear4D327535Raptor Special EditionALL
YAMAHAYFM 250 RSP22008Rear4D327537Raptor Special Edition 2ALL
YAMAHAYFM 3502004Rear5YT28073RaptorAMERICA
YAMAHAYFM 350 4X4 2012Rear68233GrizzlyEUROPE
YAMAHAYFM 350 4X4 2013Rear79379GrizzlyEUROPE
YAMAHAYFM 350 A 2x42004Rear5WH28055BruinALL
YAMAHAYFM 350 A 2x42005Rear5WH78043BruinALL
YAMAHAYFM 350 A 2x42006Rear5WH78045BruinALL
YAMAHAYFM 350 BA 2x42005Rear5WH28061BruinAMERICA
YAMAHAYFM 350 BA 2x42006Rear5WH28067BruinAMERICA
YAMAHAYFM 350 D 4X42014Rear1NS84645GrizzlyAMERICA
YAMAHAYFM 350 DH 4X42014Rear1NS84647Grizzly HunterAMERICA
YAMAHAYFM 350 FA 4X42004Rear5UH28057BruinAMERICA
YAMAHAYFM 350 FA 4X42005Rear5UH28063BruinAMERICA
YAMAHAYFM 350 FA 4X42006Rear5UH28069BruinAMERICA
YAMAHAYFM 350 FA 4X42014Rear88573GrizzlyEUROPE
YAMAHAYFM 350 FAH 4X42004Rear5UH28059Bruin Hardwood CamoAMERICA
YAMAHAYFM 350 FAH 4X42005Rear5UH28065Bruin HunterAMERICA
YAMAHAYFM 350 FAH 4X42006Rear5UH28071Bruin HunterAMERICA
YAMAHAYFM 350 FG 4X42007Rear5UH45413GrizzlyAMERICA
YAMAHAYFM 350 FG 4X42008Rear5UH27941GrizzlyAMERICA
YAMAHAYFM 350 FG 4X42009Rear5UH27951GrizzlyAMERICA
YAMAHAYFM 350 FG 4X42010Rear5UH27959GrizzlyAMERICA
YAMAHAYFM 350 FG 4X42011Rear5UH50045GrizzlyAMERICA
YAMAHAYFM 350 FG 4X42012Rear1NS68217GrizzlyAMERICA
YAMAHAYFM 350 FG 4X42013Rear1NS79245GrizzlyAMERICA
YAMAHAYFM 350 FGH 4X42008Rear5UH27943Grizzly HunterAMERICA
YAMAHAYFM 350 FGH 4X42009Rear5UH27953Grizzly HunterAMERICA
YAMAHAYFM 350 FGH 4X42010Rear5UH27961Grizzly HunterAMERICA
YAMAHAYFM 350 FGH 4X42011Rear5UH50047Grizzly HunterAMERICA
YAMAHAYFM 350 FGH 4X42012Rear1NS68219Grizzly HunterAMERICA
YAMAHAYFM 350 FGH 4X42013Rear1NS79247Grizzly HunterAMERICA
YAMAHAYFM 350 FGI 4X42007Rear4S245417Grizzly IRSAMERICA
YAMAHAYFM 350 FGI 4X42008Rear4S227945Grizzly IRSAMERICA
YAMAHAYFM 350 FGI 4X42009Rear4S289543Grizzly IRSAMERICA
YAMAHAYFM 350 FGI 4X42010Rear4S227963Grizzly IRSAMERICA
YAMAHAYFM 350 FGI 4X42011Rear4S250043Grizzly IRSAMERICA
YAMAHAYFM 350 FGIH 4X42007Rear4S245415Grizzly IRS HunterAMERICA
YAMAHAYFM 350 FGIH 4X42008Rear4S227947Grizzly IRS HunterAMERICA
YAMAHAYFM 350 FGIH 4X42009Rear4S227955Grizzly IRS HunterAMERICA
YAMAHAYFM 350 FGIH 4X42010Rear4S227965Grizzly IRS HunterAMERICA
YAMAHAYFM 350 FGIH 4X42011Rear4S250049Grizzly IRS HunterAMERICA
YAMAHAYFM 350 FH 4X41999Rear5FT27935Big Bear HunterAMERICA
YAMAHAYFM 350 FW 4X41987Rear3HN27883Big BearAMERICA
YAMAHAYFM 350 FW 4X41988Rear3HN27885Big BearAMERICA
YAMAHAYFM 350 FW 4X41989Rear3HN27887Big BearAMERICA
YAMAHAYFM 350 FW 4X41990Rear3HN27889Big BearAMERICA
YAMAHAYFM 350 FW 4X41991Rear3HN27891Big BearAMERICA
YAMAHAYFM 350 FW 4X41992Rear3HN27893Big BearAMERICA
YAMAHAYFM 350 FW 4X41993Rear3HN27897Big BearAMERICA
YAMAHAYFM 350 FW 4X41994Rear3HN27901Big BearAMERICA
YAMAHAYFM 350 FW 4X41995Rear3HN27905Big BearAMERICA
YAMAHAYFM 350 FW 4X41996Rear3HN27913Big BearAMERICA
YAMAHAYFM 350 FW 4X41997Rear4UH27921Big BearAMERICA
YAMAHAYFM 350 FW MNH 4X41992Rear3HN27895Big Bear Maine & New HampshireAMERICA
YAMAHAYFM 350 FW MNH 4X41993Rear3HN27899Big Bear Maine & New HampshireAMERICA
YAMAHAYFM 350 FW MNH 4X41994Rear3HN27903Big Bear Maine & New HampshireAMERICA
YAMAHAYFM 350 FW MNH 4X41995Rear3HN27907Big Bear Maine & New HampshireAMERICA
YAMAHAYFM 350 FW MNH 4X41996Rear3HN27915Big Bear Maine & New HampshireAMERICA
YAMAHAYFM 350 FW MNH 4X41997Rear4UH27923Big Bear Maine & New HampshireAMERICA
YAMAHAYFM 350 FWA 4X42004Rear5UH78047BruinEUROPE
YAMAHAYFM 350 FWA 4X42005Rear5UH78049BruinEUROPE
YAMAHAYFM 350 FWA 4X42006Rear5UH78051BruinEUROPE
YAMAHAYFM 350 FWB 4X41997Rear4WU27925Big BearAMERICA
YAMAHAYFM 350 FWB 4X41998Rear4WU27931Big BearAMERICA
YAMAHAYFM 350 FWB 4X41999Rear4KB27939Big BearAMERICA
YAMAHAYFM 350 FWB MNH 4X41997Rear4WU27927Big Bear Maine & New HampshireAMERICA
YAMAHAYFM 350 FWX 4X41999Rear5FT27937Big BearAMERICA
YAMAHAYFM 350 FX 4X41995Rear4KB28017WolverineAMERICA
YAMAHAYFM 350 FX 4X41996Rear4KB28021WolverineAMERICA
YAMAHAYFM 350 FX 4X41997Rear4KB28025WolverineAMERICA
YAMAHAYFM 350 FX 4X41998Rear4KB28029WolverineAMERICA
YAMAHAYFM 350 FX 4X41999Rear4KB28031WolverineAMERICA
YAMAHAYFM 350 FX 4X42000Rear4KB28033WolverineAMERICA
YAMAHAYFM 350 FX 4X42001Rear4KB28035WolverineAMERICA
YAMAHAYFM 350 FX 4X42002Rear4KB28037WolverineAMERICA
YAMAHAYFM 350 FX 4X42003Rear4KB28039WolverineAMERICA
YAMAHAYFM 350 FX 4X42004Rear4KB28041WolverineAMERICA
YAMAHAYFM 350 FX 4X42005Rear4KB28043WolverineAMERICA
YAMAHAYFM 350 FX MNH 4X41995Rear4KB28019Wolverine Maine & New HampshireAMERICA
YAMAHAYFM 350 FX MNH 4X41996Rear4KB28023Wolverine Maine & New HampshireAMERICA
YAMAHAYFM 350 FX MNH 4X41997Rear4KB28027Wolverine Maine & New HampshireAMERICA
YAMAHAYFM 350 X1987Rear1UY27967WarriorAMERICA
YAMAHAYFM 350 X1988Rear2XK27969WarriorAMERICA
YAMAHAYFM 350 X1989Rear3GD27971WarriorAMERICA
YAMAHAYFM 350 X1990Rear3GD27973WarriorAMERICA
YAMAHAYFM 350 X1991Rear3GD27975WarriorAMERICA
YAMAHAYFM 350 X1992Rear3GD27979WarriorAMERICA
YAMAHAYFM 350 X1993Rear3GD27983WarriorAMERICA
YAMAHAYFM 350 X1994Rear3GD27987WarriorAMERICA
YAMAHAYFM 350 X1995Rear3GD27991WarriorAMERICA
YAMAHAYFM 350 X1996Rear3GD27995WarriorAMERICA
YAMAHAYFM 350 X1997Rear3GD27999WarriorAMERICA
YAMAHAYFM 350 X1998Rear3GD28003WarriorAMERICA
YAMAHAYFM 350 X1999Rear3GD28005WarriorAMERICA
YAMAHAYFM 350 X2000Rear3GD28007WarriorAMERICA
YAMAHAYFM 350 X2001Rear3GD28009WarriorAMERICA
YAMAHAYFM 350 X2002Rear3GD28011WarriorAMERICA
YAMAHAYFM 350 X2003Rear3GD28013WarriorAMERICA
YAMAHAYFM 350 X2004Rear3GD28015WarriorAMERICA
Steel Replacement Wheel ARCTIC CAT (TEXTRON); Can-Am; Honda; KTM; Polaris; SUZUKI; Yamaha — Selected Models; See Fitment
1 / 1

Select an image. Zoom to inspect; drag to move.
