Full Skid Plate Yamaha — Selected Models; See Fitment

AXP RACINGPart no. AX1697

Our price £133.23

RRP £140.23Save £7.00 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

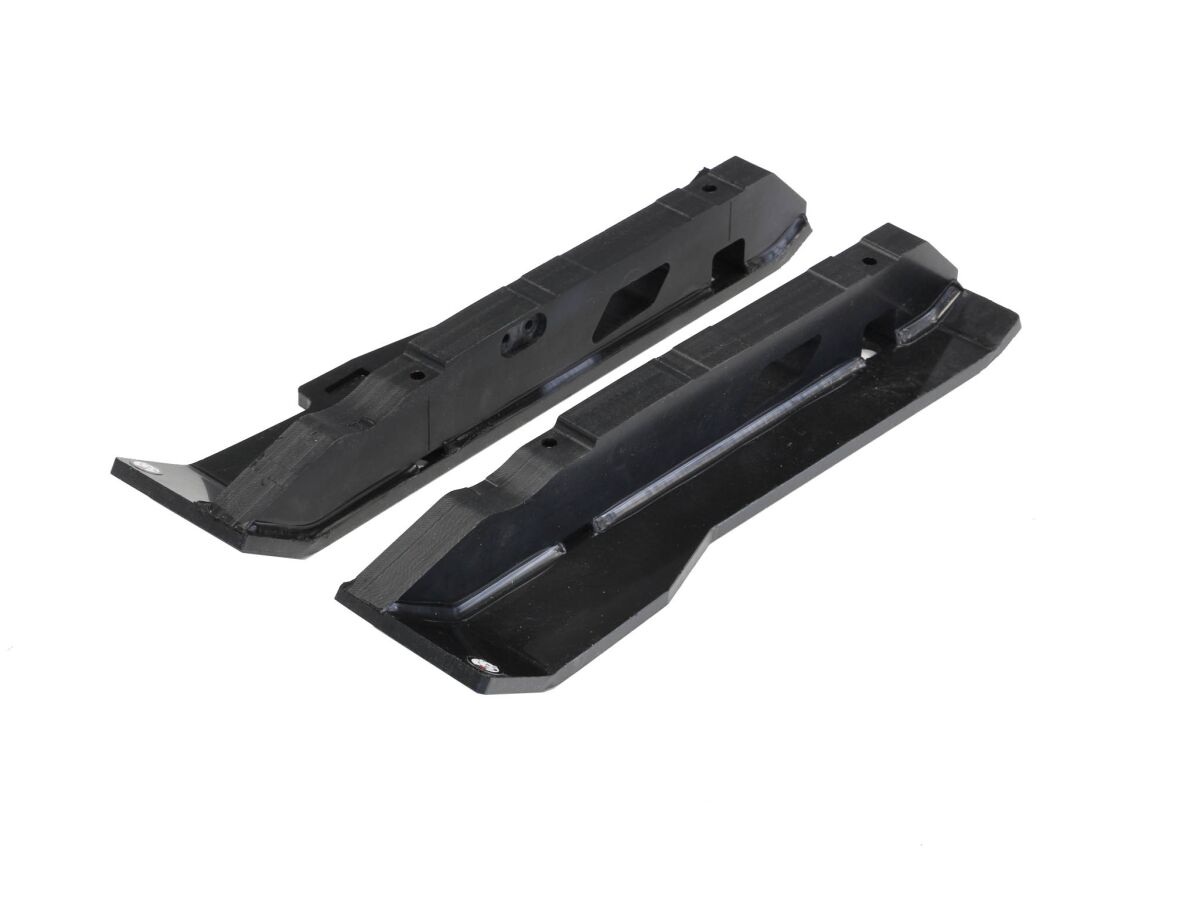

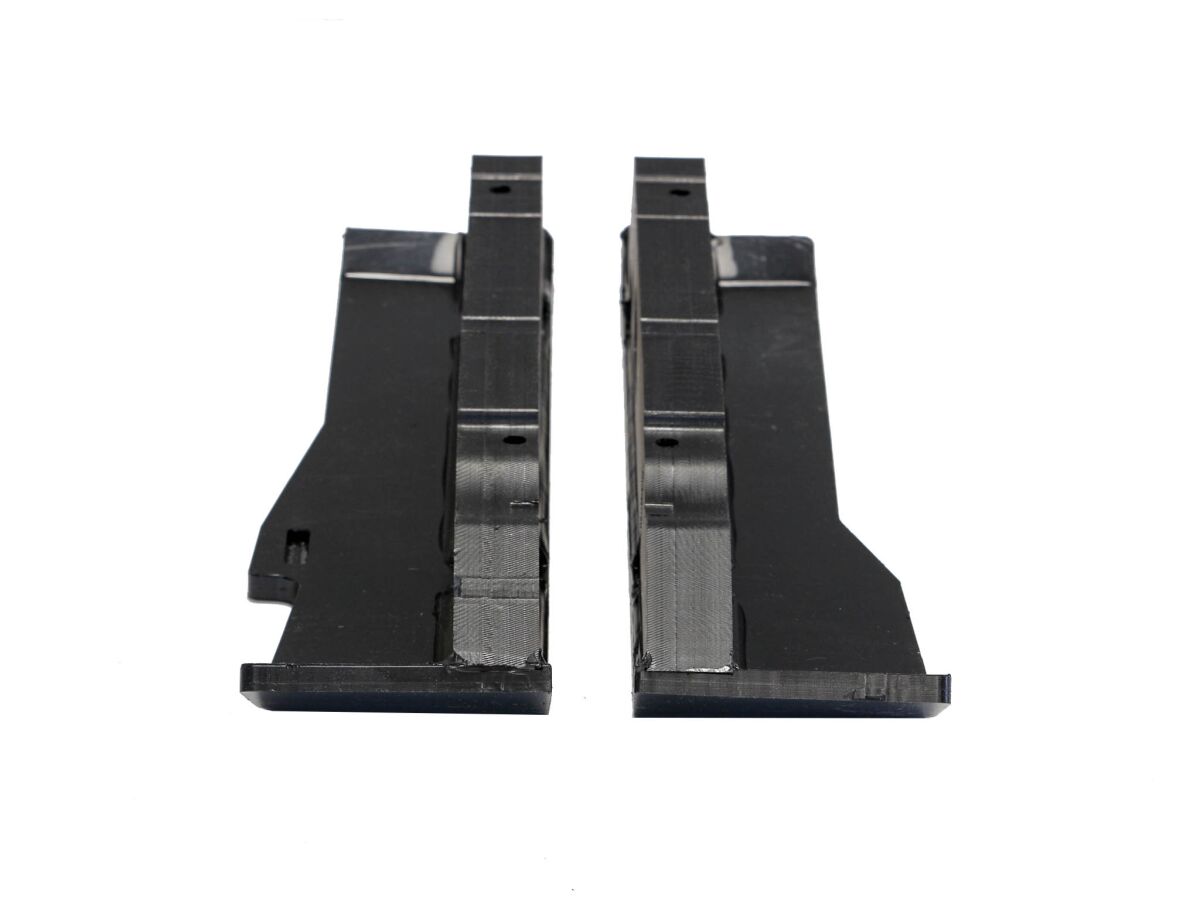

Full Skid Plate Designed in two independent blocks of 50mm thick and a central plate in HDPE plastic of 10mm thick, the skid plate provides a complete protection to the sprocket and brake disc. This system can handle any situation! HDPE is 30 to 40% lighter than aluminum, does not generate vibrations and does not undergo deformations.

Supplier reference: 05062188
Manufacturer reference: AX1697

Dimensions & specification
Material
Polyethylene (HDPE)
Type
Full Coverage
Riding Style
ATV
Product Name
Skid Plate
Color/Finish
Black
Units
Each
Mounting Position
Lower
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 38 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for AX1697
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
YAMAHAYFM 70020131PE82117RaptorAMERICA
YAMAHAYFM 70020141PE84675RaptorAMERICA
YAMAHAYFM 70020152LS89419RaptorAMERICA
YAMAHAYFM 70020162LS96389RaptorAMERICA
YAMAHAYFM 70020172LS101033RaptorAMERICA
YAMAHAYFM 7002018105163RaptorAMERICA
YAMAHAYFM 7002019109935RaptorAMERICA
YAMAHAYFM 700 R20061S329973RaptorAMERICA
YAMAHAYFM 700 R20071S329977RaptorAMERICA
YAMAHAYFM 700 R20081S329985RaptorAMERICA
YAMAHAYFM 700 R20091S329991RaptorAMERICA
YAMAHAYFM 700 R20101S329995RaptorAMERICA
YAMAHAYFM 700 R20111S350087RaptorAMERICA
YAMAHAYFM 700 R20121S368207RaptorAMERICA
YAMAHAYFM 700 R20131PE79281RaptorAMERICA
YAMAHAYFM 700 R20141PE84677RaptorAMERICA
YAMAHAYFM 700 R20152LS89421RaptorAMERICA
YAMAHAYFM 700 R20162LS96391RaptorAMERICA
YAMAHAYFM 700 R20172LS101031RaptorAMERICA
YAMAHAYFM 700 R2018105161RaptorAMERICA
YAMAHAYFM 700 R2019109933RaptorALL
YAMAHAYFM 700 RSE20071S329981Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20081S329987Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20091S329993Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20101S329997Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20111S350089Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20121S368209Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20131PE79283Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20141PE84679Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20152LS89423Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20162LS96393Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20172LS101029Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE2018105159Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE2019109931Raptor Special EditionALL
YAMAHAYFM 700 RSE220071S329983Raptor Special Edition 2AMERICA
YAMAHAYFM 700 RSE220081S329989Raptor Special Edition 2AMERICA
YAMAHAYFM 700 RSP20061S329975Raptor 50th AnniversaryAMERICA
YAMAHAYFM 700 RYR20071S329979Raptor Gtyr EditionAMERICA
