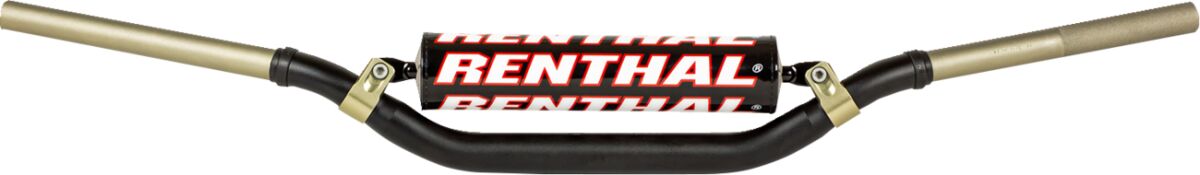

Twinwall® Handlebar — Anodized| Black
Our price £175.91
Price includes applicable VAT. Delivery calculated separately.
Choose the exact model and year to view its supplier application.
Product details
Twinwall® Handlebar Twinwall® construction consists of two aluminum alloy tubes, one within the other Outer tube is 7010-T73, which has extreme resistance to mechanical damage and is anodized to prevent corrosion Inner tube is ultra high strength 7010-T6 aluminum and is hard anodized to resist wear from twist grip and controls Rubber seals are used to cover the ends of the outer tube to keep water and cleaning fluids out Laser marked in the middle for accurate positioning Each handlebar includes an updated injection molded foam bar pad for better protection and greater durability Requires model-specific 1-1/8" bar mounts for bikes originally equipped with 7/8" bars. Modeled after the stock bars on '09-'12 KTM SX/SX-F, '06-'13 Suzuki RM/RM-Z and '18-'21 Yamaha YZ-F models.
Supplier reference: 06016254
Manufacturer reference: 991-01-BK-07-185
Dimensions & specification
- Clamping Width Metric
- 125 mm
- Color/Finish
- Anodized| Black
- Controls Diameter
- 22 mm (7/8")
- Product Name
- Handlebar
- Units
- Each
- Controls Diameter Metric
- 22 mm
- Rise Imperial
- 2"
- Material
- 7010-T6 Aluminum
- Clamping Diameter Metric
- 28.6 mm
- Handlebar Diameter Imperial
- 1-1/8"
- Riding Style
- ATV| Off-Road
- Pullback/Sweep
- 56 mm (2-3/16")
- Width
- 80,6 cm (31-3/4")
- Clamping Width
- 125 mm (4-15/16")
- Handlebar Diameter Metric
- 28.6 mm
- Clamping Diameter
- 28,6 mm (1-1/8")
- Style
- Universal
- Clamping Diameter Imperial
- 1-1/8"
- Controls Diameter Imperial
- 7/8"
- Base Finish
- Anodized
- Pullback/Sweep Metric
- 56 mm
- Width Metric
- 80.6 cm
- Rise Metric
- 51 mm
- Pullback/Sweep Imperial
- 2-3/16"
- Height Metric
- 85 mm
- Height
- 85 mm (3-3/8")
- Features
- Crossbar| Includes Pad| Knurled Clutch End
- Type/Bend
- RM| RMZ| SX| Twinwall| YZ
- Clamping Width Imperial
- 4-15/16"
- Rise
- 51 mm (2")
- Width Imperial
- 31-3/4"
- Handlebar Diameter
- 28,6 mm (1-1/8")
- Height Imperial
- 3-3/8"
- Base Color
- Black
