Piston Kit Cast Replica for 4-Stroke Yamaha — Selected Models; See Fitment

VERTEXPart no. 23104

Our price £151.76

RRP £159.74Save £7.98 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

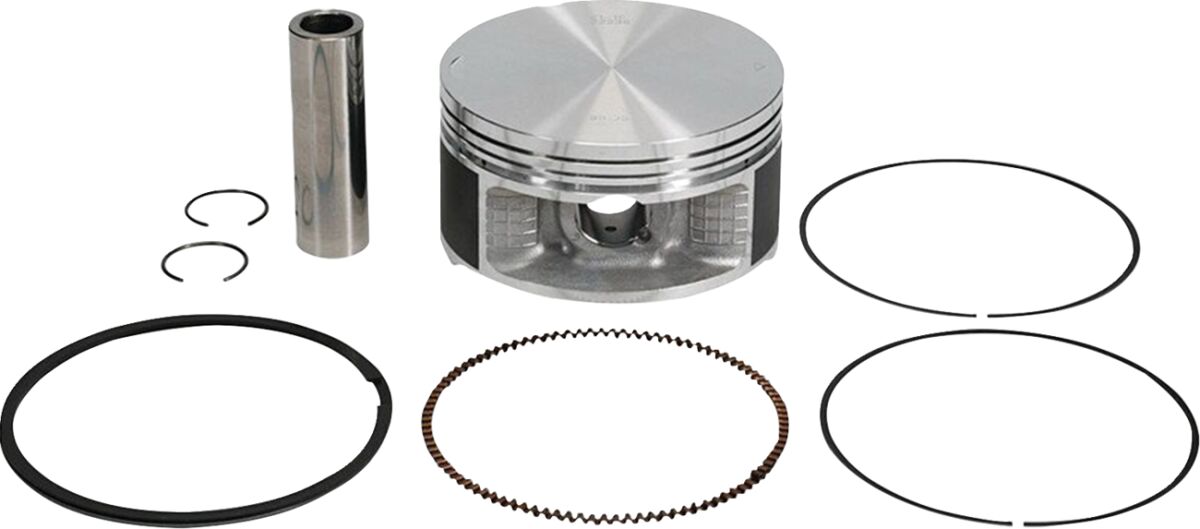

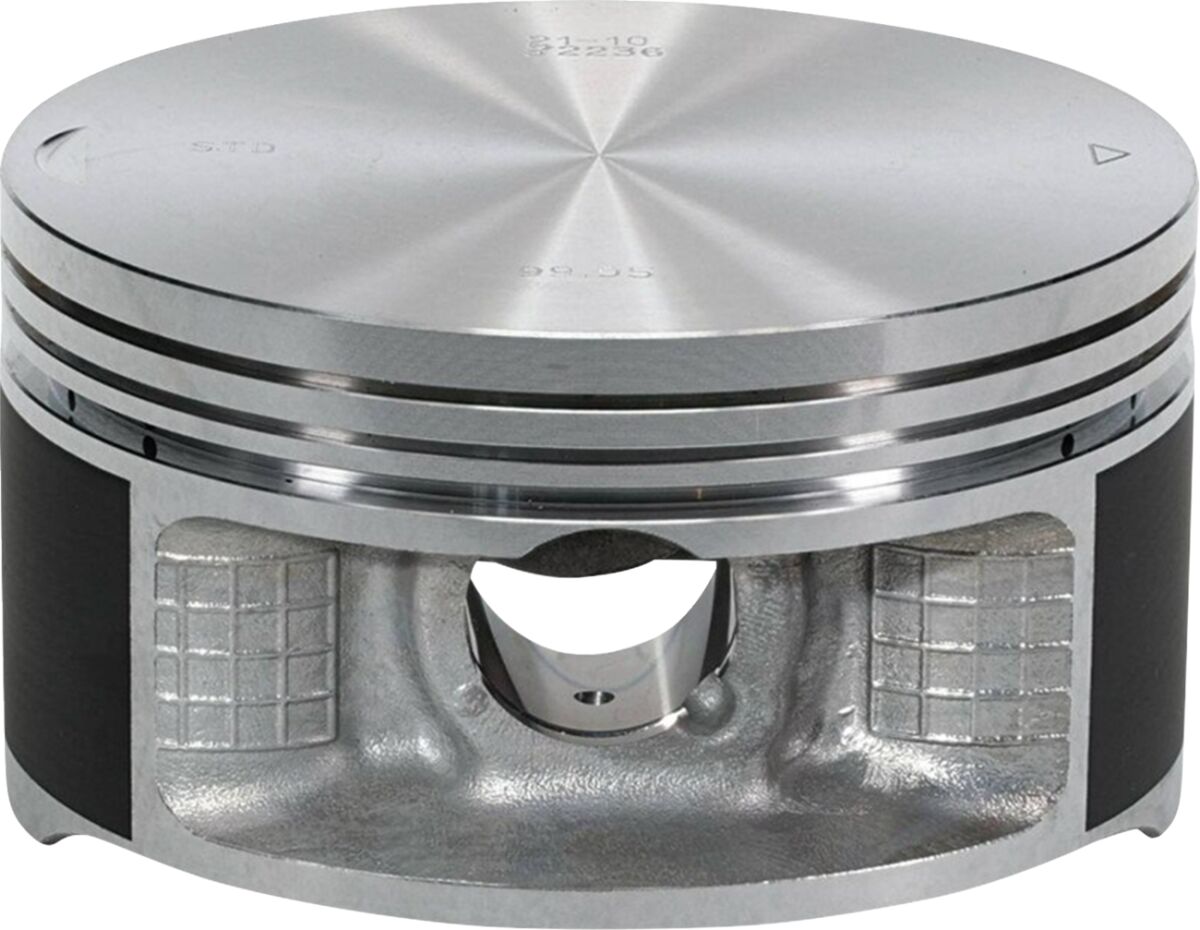

Piston Kit Cast Replica for 4-Stroke The piston is heat-treated with a T-5 hardening and tempering cycle The piston skirt is coated with a high-tech Molybdenum Disulphite coating for faster break in time and increased piston life Cast piston is gravity-cast aluminum alloy (not forged) with 18% silicone content OE replacement piston Kit includes piston, rings, wrist pin and circlips Kit Includes: • Cast Replica Piston • Ring Set • Wrist Pin • Circlips

Supplier reference: 09101090
Manufacturer reference: 23104

Dimensions & specification
Cylinder Diameter Metric
100.00 mm
Cylinder Diameter
100,00 mm
Displacement
660 cc
Skirt Coating
Molybdenum Disulphite
Units
Kit
Riding Style
ATV| UTV
Compression Ratio Imperial
9.1:1
Compression Ratio
9,1:1
Bore - Oversize
Standard
Bore - Oversize Metric
Standard
Model
Cast Replica
Piston Diameter
99,95 mm
Piston Diameter Metric
99.95 mm
Piston Material
Aluminum Alloy| Cast
Product Name
Piston Kit
Engine Type
4-Stroke
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 45 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for 23104
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
YAMAHAYFM 660 F 4X420025KM29885GrizzlyAMERICA
YAMAHAYFM 660 F 4X420025KM29887Grizzly SilverAMERICA
YAMAHAYFM 660 F 4X420035KM29891GrizzlyAMERICA
YAMAHAYFM 660 F 4X420035KM29893Grizzly TitaniumAMERICA
YAMAHAYFM 660 F 4X420045KM29897GrizzlyAMERICA
YAMAHAYFM 660 F LE 4X420045KM29901Grizzly Limited EditionAMERICA
YAMAHAYFM 660 FA 4X420055KM29905GrizzlyAMERICA
YAMAHAYFM 660 FA 4X420065KM29913GrizzlyAMERICA
YAMAHAYFM 660 FA SE 4X420055KM29911Grizzly Special EditionAMERICA
YAMAHAYFM 660 FA SE 4X420065KM29919Grizzly Special EditionAMERICA
YAMAHAYFM 660 FAH 4X420055KM29907Grizzly HunterAMERICA
YAMAHAYFM 660 FAH 4X420065KM29915Grizzly HunterAMERICA
YAMAHAYFM 660 FAHD 4X420065KM29917Grizzly Hunter Ducks Unlimited EditionAMERICA
YAMAHAYFM 660 FAHW 4X420055KM29909Grizzly Hunter Wetland EditionAMERICA
YAMAHAYFM 660 FG 4X420075KM45389GrizzlyAMERICA
YAMAHAYFM 660 FG 4X420085KM45391GrizzlyAMERICA
YAMAHAYFM 660 FGH 4X420075KM45393Grizzly HunterAMERICA
YAMAHAYFM 660 FGH 4X420085KM45395Grizzly HunterAMERICA
YAMAHAYFM 660 FH 4X420025KM29889Grizzly HunterAMERICA
YAMAHAYFM 660 FH 4X420035KM45431Grizzly Hunter Realtree HardwoodAMERICA
YAMAHAYFM 660 FH 4X420035KM29895Grizzly Hunter Wetland EditionAMERICA
YAMAHAYFM 660 FH 4X420045KM29903Grizzly Hunter Hardwoods CamoAMERICA
YAMAHAYFM 660 FH 4X420045KM29899Grizzly Hunter Wetland EditionAMERICA
YAMAHAYFM 660 R20015LP29873RaptorAMERICA
YAMAHAYFM 660 R20025LP29875RaptorAMERICA
YAMAHAYFM 660 R20035LP29877RaptorAMERICA
YAMAHAYFM 660 R20045LP29879RaptorAMERICA
YAMAHAYFM 660 R20055LP29883RaptorAMERICA
YAMAHAYFM 660 R LE20035LP45435Raptor Limited EditionAMERICA
YAMAHAYFM 660 R LE20045LP29881Raptor Limited EditionAMERICA
YAMAHAYFM 660 R SE20055LP45429Raptor Special EditionAMERICA
YAMAHAYXR 660 F 4X420075UG29937RhinoAMERICA
YAMAHAYXR 660 F DU 4X420075UG29943Rhino Ducks Unlimited EditionAMERICA
YAMAHAYXR 660 F EX 4X420075UG29945Rhino Exploring EditionAMERICA
YAMAHAYXR 660 F SE 4X420075UG29939Rhino Special EditionAMERICA
YAMAHAYXR 660 F SP 4X420075UG29941Rhino Sport EditionAMERICA
YAMAHAYXR 660 FA 4X420045UG29921RhinoAMERICA
YAMAHAYXR 660 FA 4X420055UG29925RhinoAMERICA
YAMAHAYXR 660 FA 4X420065UG29929RhinoAMERICA
YAMAHAYXR 660 FA EX 4X420065UG29935Rhino Exploring EditionAMERICA
YAMAHAYXR 660 FA SE 4X420065UG29933Rhino Special EditionAMERICA
YAMAHAYXR 660 FAH 4X420045UG29923Rhino Hunter Hardwoods CamoAMERICA
YAMAHAYXR 660 FAH 4X420055UG29927Rhino Hunter Hardwoods CamoAMERICA
YAMAHAYXR 660 FAH 4X420065UG29931Rhino HunterAMERICA
YAMAHAYXR 660 FH 4X420075UG29947Rhino Hunter Hardwoods CamoAMERICA
