Piston Kit Forged Series for 4-Stroke Kawasaki KFX 700 2X4 Sport 2004-2010 / Kawasaki KVF 700 4X4 2004-2005 / Kawasaki KVF 700 4X4 Prairie 2006 (AMERICA) / Kawasaki KVF 700 4X4 Prairie Hardwoods Green HD 2004-2005 (AMERICA) / Kawasaki KVF 700 4X4 Prairie Team Green 2005-2006 (AMERICA) / SUZUKI LT-V 700 F 4X4 Twin Peaks 2004-2006
Our price £161.41
Price includes applicable VAT. Delivery calculated separately.
Choose the exact model and year to view its supplier application.
Product details

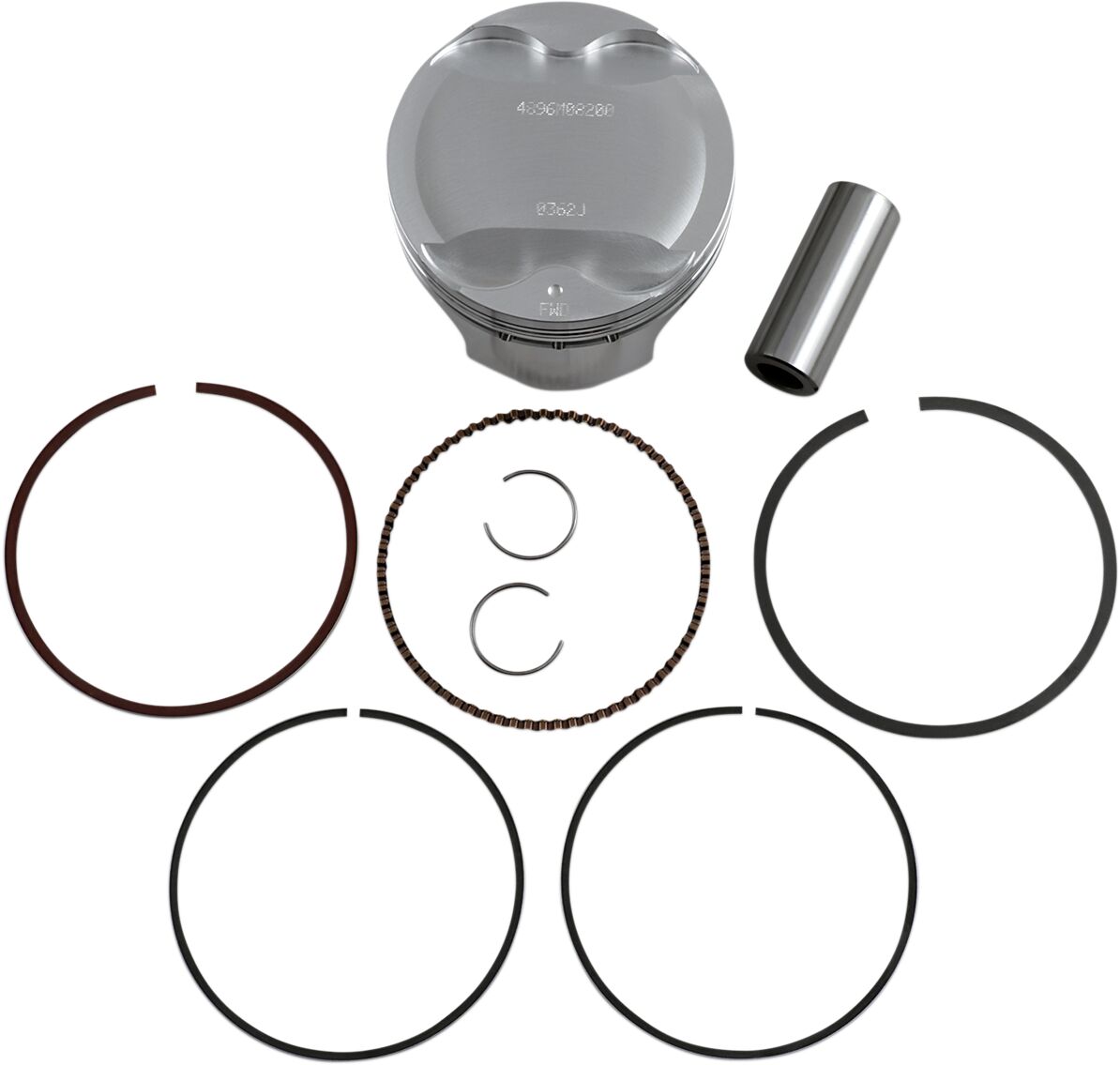

Piston Kit Forged Series for 4-Stroke Forged 4-stroke piston is designed for each specific engine application and built to the tightest tolerances for the ultimate combination of performance and strength Dedicated forgings allow for optimized strength-to-weight ratio Ideal for multiple purpose riding Kit includes piston, wrist pin, rings and circlips Cylinder deglazing required. Kit Includes: • 1x Piston • 1x Ring Set #3228XC • 1x Wrist Pin #S641 • 1x Circlip Set #CW20
Supplier reference: 09102840
Manufacturer reference: W4896M08200
Dimensions & specification
- Riding Style
- ATV
- Units
- Kit
- Skirt Coating
- Non-Coated
- Bore - Oversize
- Standard
- Piston Diameter Metric
- Standard
- Compression Ratio
- 11,5:1
- Stroke Length
- 66,00 mm
- Model
- Forged Series
- Bore - Oversize Metric
- Standard
- Engine Type
- 4-Stroke
- Compression Ratio Imperial
- 11.5:1
- Piston Material
- Forged 2618 Aluminum
- Bore Size
- 82,00 mm
- Bore Size Metric
- 82.00 mm
- Product Name
- Piston Kit
- Displacement
- 697 cc
- Piston Diameter
- Standard
- Stroke Length Metric
- 66.00 mm
Delivery & returns
UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.
The right part starts
with the right details.
Compare your model, year and exact variant, then check the number on your original part.
Vehicle fitment
All 17 supplier-listed applications. Match your complete model, year, position and any notes.
| Make | Model & variant | Year | Vehicle type | Vehicle ID | Variant | Market |
|---|---|---|---|---|---|---|
| KAWASAKI | KFX 700 2X4 | 2004 | KSV700B | 14841 | Sport | ALL |
| KAWASAKI | KFX 700 2X4 | 2005 | KSV700B | 14843 | Sport | ALL |
| KAWASAKI | KFX 700 2X4 | 2006 | KSV700B | 14845 | Sport | ALL |
| KAWASAKI | KFX 700 2X4 | 2007 | KSV700A | 14847 | Sport | ALL |
| KAWASAKI | KFX 700 2X4 | 2008 | KSV700A | 14849 | Sport | ALL |
| KAWASAKI | KFX 700 2X4 | 2009 | KSV700A | 52963 | Sport | ALL |
| KAWASAKI | KFX 700 2X4 | 2010 | KSV700A | 52961 | Sport | ALL |
| KAWASAKI | KVF 700 4X4 | 2004 | 53001 | ALL | ||
| KAWASAKI | KVF 700 4X4 | 2004 | KVF700B | 14871 | Prairie Hardwoods Green HD | AMERICA |
| KAWASAKI | KVF 700 4X4 | 2005 | 53003 | ALL | ||
| KAWASAKI | KVF 700 4X4 | 2005 | KVF700B | 14873 | Prairie Hardwoods Green HD | AMERICA |
| KAWASAKI | KVF 700 4X4 | 2005 | KVF700D | 14875 | Prairie Team Green | AMERICA |
| KAWASAKI | KVF 700 4X4 | 2006 | KVF700A | 14877 | Prairie | AMERICA |
| KAWASAKI | KVF 700 4X4 | 2006 | KVF700D | 14879 | Prairie Team Green | AMERICA |
| SUZUKI | LT-V 700 F 4X4 | 2004 | 55183 | Twin Peaks | ALL | |
| SUZUKI | LT-V 700 F 4X4 | 2005 | 55185 | Twin Peaks | ALL | |
| SUZUKI | LT-V 700 F 4X4 | 2006 | 55187 | Twin Peaks | ALL |
