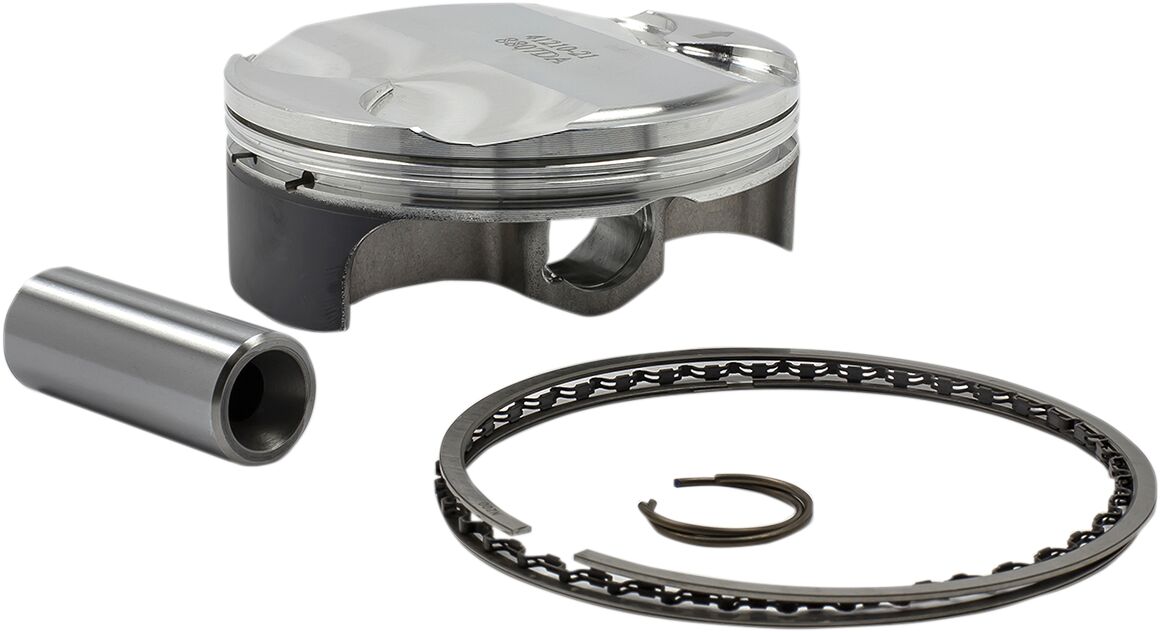

Piston Kit for 4 Stroke SUZUKI DR-Z 400 E 2000-2007 (AMERICA) / SUZUKI DR-Z 400 E 2000-2005 (EUROPE) / SUZUKI DR-Z 400 S 2000-2017 (AMERICA) / SUZUKI DR-Z 400 S 2000-2006 (EUROPE) / SUZUKI LT-Z 400 2X4 Quadsport 2003-2012

WOSSNERPart no. 8563DA

Our price £201.76

RRP £212.38Save £10.62 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

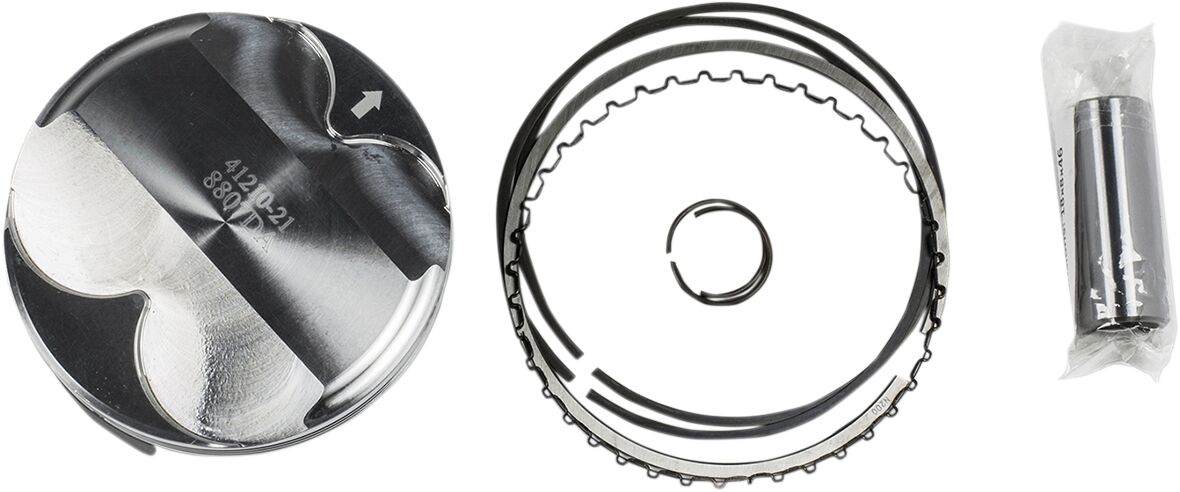

Piston Kit for 4 Stroke Enhanced piston pin oiling slots, radial boss machining, and annular grooves for improved wrist pin lubrication Lightweight piston with a tight piston wall clearance for a quieter running engine Skirt coated for reduced friction and improved break in performance Ring land treatment for improved ring seal and oil control Double bridged forging design where noted Kit includes piston, rings, wrist pin and pin locks Kit Includes: • Piston #8563DA • Ring Set #GNH90.00 • Wrist Pin #WP029-SP • Retaining Clips #CW20

Supplier reference: 09104927
Manufacturer reference: 8563DA

Dimensions & specification
Stroke Length Metric
62.60 mm
Piston Size Metric
89.94 mm
Riding Style
Adventure Touring / Dual-Sport| ATV| Off-Road| Street
Compression Ratio
12,2:1
Bore - Oversize Metric
Standard
Piston Size
89,94 mm
Engine Type
4-Stroke
Style
Standard Size A
Bore Size Metric
90.00 mm
Piston Material
Aluminum Alloy| Forged
Model
Standard Series
Stroke Length
62,60 mm
Product Name
Piston Kit
Compression Ratio Imperial
12.2:1
Bore - Oversize
Standard
Bore Size
90,00 mm
Units
Kit
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 49 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for 8563DA
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
SUZUKIDR-Z 400 E2000DK43320767AMERICA
SUZUKIDR-Z 400 E2000BF20725EUROPE
SUZUKIDR-Z 400 E2001DK43320769AMERICA
SUZUKIDR-Z 400 E2001BF20727EUROPE
SUZUKIDR-Z 400 E2002DK43320771AMERICA
SUZUKIDR-Z 400 E2002BF20729EUROPE
SUZUKIDR-Z 400 E2003DK43320773AMERICA
SUZUKIDR-Z 400 E2003BF20735EUROPE
SUZUKIDR-Z 400 E2004DK43320775AMERICA
SUZUKIDR-Z 400 E2004BF20739EUROPE
SUZUKIDR-Z 400 E2005DK43320777AMERICA
SUZUKIDR-Z 400 E2005BF20747EUROPE
SUZUKIDR-Z 400 E2006DK43320779AMERICA
SUZUKIDR-Z 400 E2007DK43320781AMERICA
SUZUKIDR-Z 400 S2000SK43A20783AMERICA
SUZUKIDR-Z 400 S2000WVBC20715EUROPE
SUZUKIDR-Z 400 S2001SK43A20785AMERICA
SUZUKIDR-Z 400 S2001WVBC20719EUROPE
SUZUKIDR-Z 400 S2002SK43A20787AMERICA
SUZUKIDR-Z 400 S2002WVBC20721EUROPE
SUZUKIDR-Z 400 S2003SK43A20789AMERICA
SUZUKIDR-Z 400 S2003WVBC20731EUROPE
SUZUKIDR-Z 400 S2004SK43A20791AMERICA
SUZUKIDR-Z 400 S2004WVBC20737EUROPE
SUZUKIDR-Z 400 S2005SK43A20793AMERICA
SUZUKIDR-Z 400 S2005WVBC20745EUROPE
SUZUKIDR-Z 400 S2006SK43A20795AMERICA
SUZUKIDR-Z 400 S2006WVBC20751EUROPE
SUZUKIDR-Z 400 S2007SK43A20797AMERICA
SUZUKIDR-Z 400 S2008SK43A20799AMERICA
SUZUKIDR-Z 400 S2009SK43A20801AMERICA
SUZUKIDR-Z 400 S2010SK43A55481AMERICA
SUZUKIDR-Z 400 S2011SK43A55483AMERICA
SUZUKIDR-Z 400 S2012SK43A68287AMERICA
SUZUKIDR-Z 400 S2013SK43A84911AMERICA
SUZUKIDR-Z 400 S2014SK43A84913AMERICA
SUZUKIDR-Z 400 S2015SK43A91073AMERICA
SUZUKIDR-Z 400 S2016SK43A94053AMERICA
SUZUKIDR-Z 400 S2017SK43A100845AMERICA
SUZUKILT-Z 400 2X42003AK47A20971QuadsportALL
SUZUKILT-Z 400 2X42004AK47A20969QuadsportALL
SUZUKILT-Z 400 2X42005AK47A20973QuadsportALL
SUZUKILT-Z 400 2X42006AK47A20975QuadsportALL
SUZUKILT-Z 400 2X42007AK47A20977QuadsportALL
SUZUKILT-Z 400 2X42008AK47A20979QuadsportALL
SUZUKILT-Z 400 2X42009AK4AA20981QuadsportALL
SUZUKILT-Z 400 2X42010AK4AA20983QuadsportALL
SUZUKILT-Z 400 2X42011AK4AA55501QuadsportALL
SUZUKILT-Z 400 2X42012AK4AA70695QuadsportALL
Piston Kit for 4 Stroke SUZUKI DR-Z 400 E 2000-2007 (AMERICA) / SUZUKI DR-Z 400 E 2000-2005 (EUROPE) / SUZUKI DR-Z 400 S 2000-2017 (AMERICA) / SUZUKI DR-Z 400 S 2000-2006 (EUROPE) / SUZUKI LT-Z 400 2X4 Quadsport 2003-2012
