Quad Parts

Connecting Rod Yamaha — Selected Models; See Fitment

PROXPart no. 03.2021

Our price £95.05

RRP £100.04Save £4.99 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

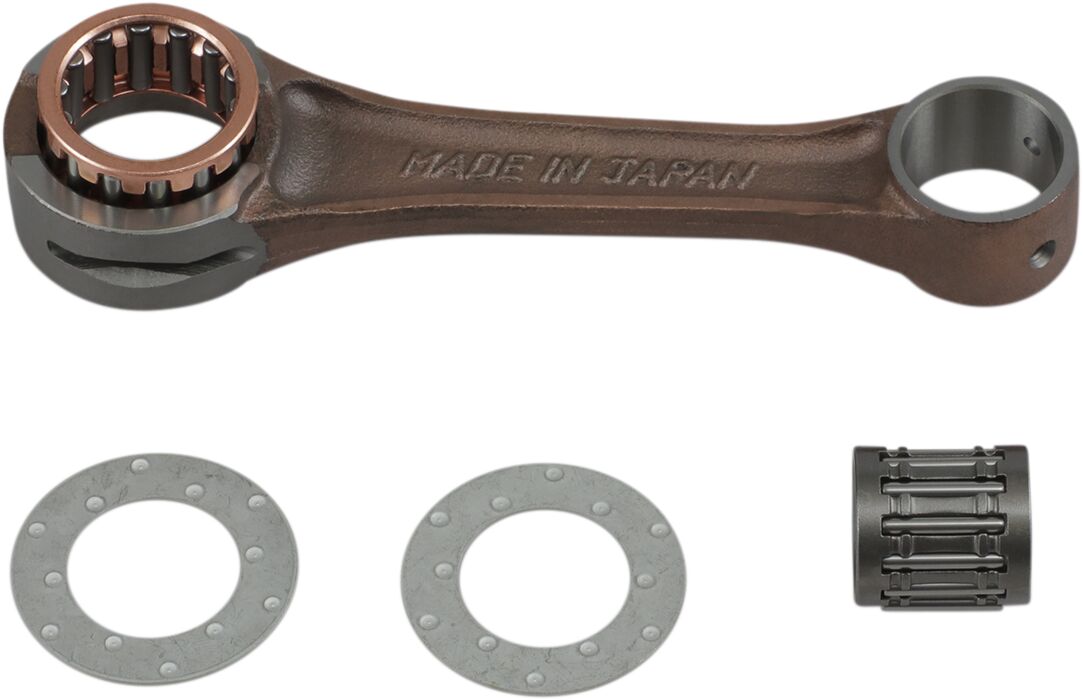

Connecting Rod Comes complete with crankpin, big-end bearing, small-end bearing, and washers Easy to install Big-end pin not included. Big End Bore: 29.00 mm Big End Width: 17.00 mm Length: 142.50 mm Center-to-Center Length: 110.00 mm Pin End Bore: 21.00 mm Pin End Bore Width: 18.00 mm Shaft Length: 85.00 mm

Supplier reference: 09230166
Manufacturer reference: 03.2021

Dimensions & specification
Features
No big-end pin
Displacement
350 cc
Units
Each
Material
Forged Steel
Product Name
Connecting Rod Kit
Engine Type
2-Stroke
Riding Style
ATV| Street
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 52 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for 03.2021
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
YAMAHARD 350 LC19833327773YPVSAMERICA
YAMAHARD 350 LC198331K27733YPVSEUROPE
YAMAHARD 350 LC19843327775YPVSAMERICA
YAMAHARD 350 LC198431K27735YPVSEUROPE
YAMAHARD 350 LC19851AG27777YPVSAMERICA
YAMAHARD 350 LC19851JF27737YPVSEUROPE
YAMAHARD 350 LC198557V27739YPVSEUROPE
YAMAHARD 350 LC19861WV27779YPVSAMERICA
YAMAHARD 350 LC19861UA/WW/WX27761YPVSEUROPE
YAMAHARD 350 LC19861WT/WW/WX27741YPVSEUROPE
YAMAHARD 350 LC19871WV27781YPVSAMERICA
YAMAHARD 350 LC19871UA/WW/WX27763YPVSEUROPE
YAMAHARD 350 LC19871WT/WW/WX/2UA27743YPVSEUROPE
YAMAHARD 350 LC19881UA/WW/WX27765YPVSEUROPE
YAMAHARD 350 LC19883DH/2UA/1WT/WW/WX27745YPVSEUROPE
YAMAHARD 350 LC19891UA/WW/WX27767YPVSEUROPE
YAMAHARD 350 LC19893DH/2UA/1WT/WW/WX27747YPVSEUROPE
YAMAHARD 350 LC19903DH1/2UA27749YPVSEUROPE
YAMAHARD 350 LC19913DH1/2UA27751YPVSEUROPE
YAMAHARD 350 LC R19924CE27753YPVSEUROPE
YAMAHAYFZ 35019872GU28095BansheeALL
YAMAHAYFZ 35019882GU28097BansheeALL
YAMAHAYFZ 35019893GG28099BansheeALL
YAMAHAYFZ 35019903GG28101BansheeALL
YAMAHAYFZ 35019913GG28103BansheeALL
YAMAHAYFZ 35019923GG28107BansheeALL
YAMAHAYFZ 35019933GG28111BansheeALL
YAMAHAYFZ 35019943GG28115BansheeALL
YAMAHAYFZ 35019953GG28119BansheeALL
YAMAHAYFZ 35019963GG28123BansheeALL
YAMAHAYFZ 35019973GG28127BansheeALL
YAMAHAYFZ 35019983GG28131BansheeALL
YAMAHAYFZ 35019993GG28133BansheeALL
YAMAHAYFZ 35020003GG28135BansheeALL
YAMAHAYFZ 35020013GG28137BansheeALL
YAMAHAYFZ 35020023GG28139BansheeALL
YAMAHAYFZ 35020033GG28141BansheeALL
YAMAHAYFZ 35020043GG28143BansheeALL
YAMAHAYFZ 35020053GG28147BansheeALL
YAMAHAYFZ 35020063GG28151BansheeALL
YAMAHAYFZ 350 LE20033GG45433Banshee Limited EditionALL
YAMAHAYFZ 350 LE20043GG28145Banshee Limited EditionALL
YAMAHAYFZ 350 MNH19913GG28105Banshee Maine & New HampshireAMERICA
YAMAHAYFZ 350 MNH19923GG28109Banshee Maine & New HampshireAMERICA
YAMAHAYFZ 350 MNH19933GG28113Banshee Maine & New HampshireAMERICA
YAMAHAYFZ 350 MNH19943GG28117Banshee Maine & New HampshireAMERICA
YAMAHAYFZ 350 MNH19953GG28121Banshee Maine & New HampshireAMERICA
YAMAHAYFZ 350 MNH19963GG28125Banshee Maine & New HampshireAMERICA
YAMAHAYFZ 350 MNH19973GG28129Banshee Maine & New HampshireAMERICA
YAMAHAYFZ 350 SE20053GG28149Banshee Limited EditionALL
YAMAHAYFZ 350 SE20063GG28153Banshee Limited EditionALL
YAMAHAYFZ 350 SP20063GG28155Banshee Limited EditionALL
Connecting Rod Yamaha — Selected Models; See Fitment
1 / 1

Select an image. Zoom to inspect; drag to move.
