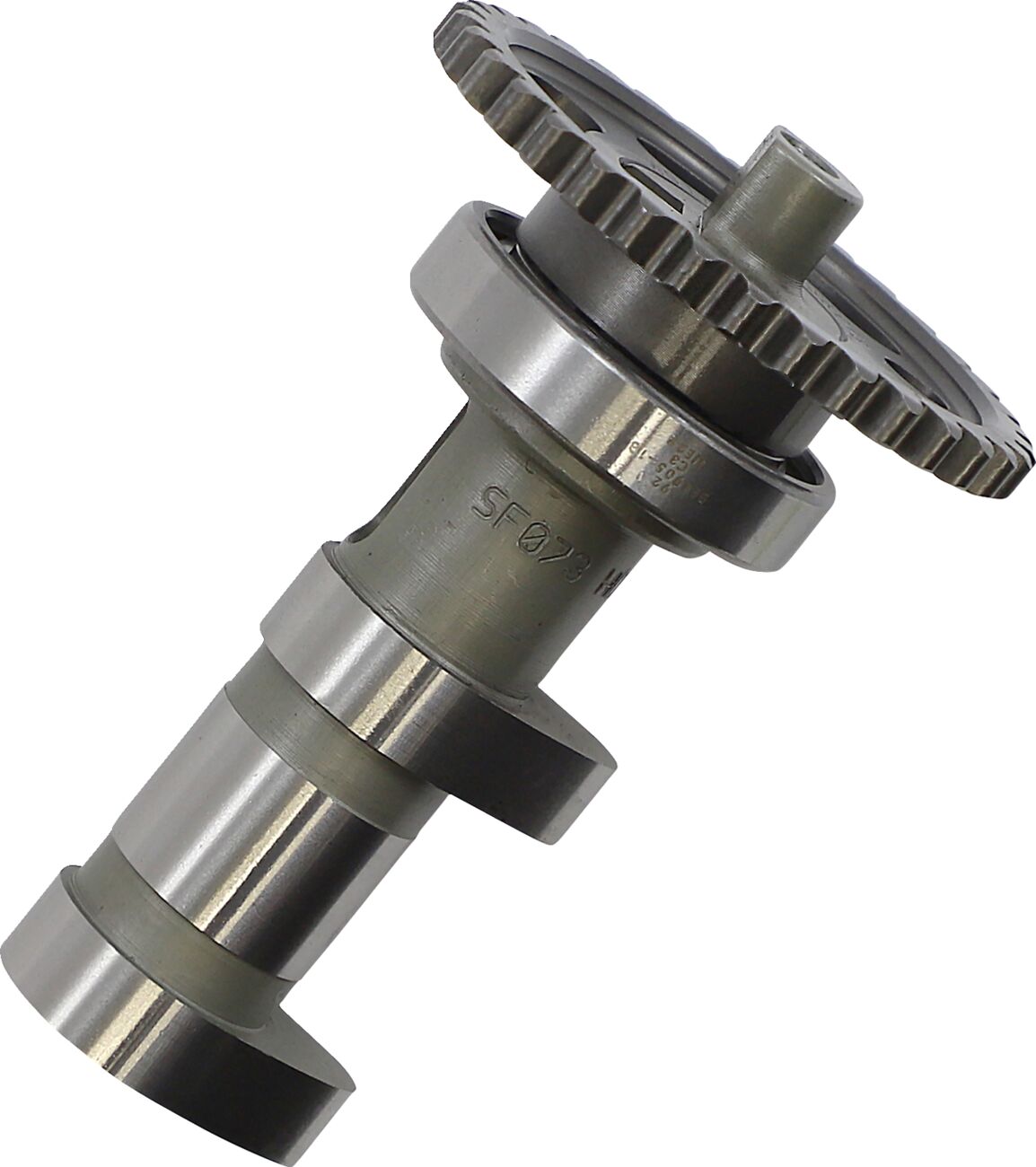

Camshaft Exhaust Stage 1 SUZUKI LT-R 450 2X4 Quadracer 2006-2009
Our price £284.23
Price includes applicable VAT. Delivery calculated separately.
Choose the exact model and year to view its supplier application.
Product details
Camshaft Exhaust Stage 1 Stage 1 is designed for low end torque Adds a 5%-10% power gain Designed and dyno proven in the USA Manufactured by utilizing state of the art valvetrain software CNC machined from 8620 billet, case-hardened steel for an exact fit and lobe profile Engineered to be drop-in cams, that use stock valve springs (unless otherwise noted). Select cams feature Hot Cams Improved Throttle Design (ITR) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end. For dual cam engine. Mid range gain with top end gain and over rev. OE fuel mapping is acceptable, but could be fined tuned. Uses stock auto-compression mechanism. Exhaust Valve Lash: 0.250 mm.
Supplier reference: 09250138
Manufacturer reference: 2073-1E
Dimensions & specification
- Application
- Exhaust
- Exhaust Lobe Centerline
- 109°
- Exhaust Lobe Centerline Imperial
- 109°
- Exhaust Lift
- 9,550 mm
- Type
- Stage 1
- Riding Style
- ATV
- Exhaust Duration
- 253°
- Units
- Each
- Exhaust Lift Metric
- 9.550 mm
- Exhaust Duration Imperial
- 253°
- Product Name
- Camshaft
Delivery & returns
UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.
The right part starts
with the right details.
Compare your model, year and exact variant, then check the number on your original part.
Vehicle fitment
All 4 supplier-listed applications. Match your complete model, year, position and any notes.
| Make | Model & variant | Year | Vehicle type | Vehicle ID | Variant | Market |
|---|---|---|---|---|---|---|
| SUZUKI | LT-R 450 2X4 | 2006 | AL41A | 21119 | Quadracer | ALL |
| SUZUKI | LT-R 450 2X4 | 2007 | AL41A | 21121 | Quadracer | ALL |
| SUZUKI | LT-R 450 2X4 | 2008 | AL41A | 21123 | Quadracer | ALL |
| SUZUKI | LT-R 450 2X4 | 2009 | AL41A | 21125 | Quadracer | ALL |
