Quad Parts

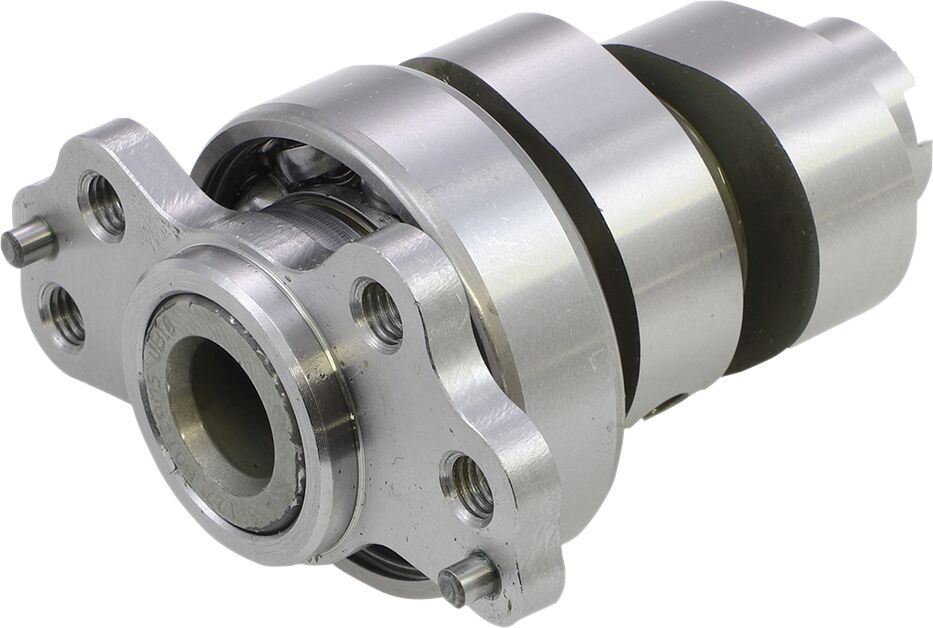

Camshaft Stage 2 Yamaha — Selected Models; See Fitment

HOT CAMSPart no. 4132-2

Our price £272.34

RRP £286.67Save £14.33 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

Camshaft Stage 2 Computer Numerical Control (CNC) from 8620 billet steel and case harden Designed and dyno proven in the USA Engineered by using valvetrain software Adds a 5%-10% power gain Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end Designed for mid to top end gains. Engineered to be drop in cams that use stock valve springs (unless otherwise noted). Excellent top end and great over rev. Uses stock valve springs and rockers. Uses stock decompression mechanism. For single cam engine. Intake Valve Lash: 0.100 mm. Exhaust Valve Lash: 0.180 mm.

Supplier reference: 09250507
Manufacturer reference: 4132-2

Dimensions & specification
Exhaust Lift
8,60 mm
Exhaust Duration Imperial
243°
Exhaust Lobe Centerline Imperial
102.500°
Exhaust Lift Metric
8.60 mm
Intake Lobe Centerline
111°
Intake Duration
260°
Application
Exhaust| Intake
Exhaust Lobe Centerline
102,500°
Intake Lobe Centerline Imperial
111°
Product Name
Camshaft
Riding Style
ATV
Exhaust Duration
243°
Type
Stage 2
Intake Duration Imperial
260°
Units
Each
Intake Lift
10,30 mm
Intake Lift Metric
10.30 mm
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 43 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for 4132-2
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
YAMAHAYFM 70020131PE82117RaptorAMERICA
YAMAHAYFM 70020141PE84675RaptorAMERICA
YAMAHAYFM 70020152LS89419RaptorAMERICA
YAMAHAYFM 700 R20091S329991RaptorAMERICA
YAMAHAYFM 700 R20101S329995RaptorAMERICA
YAMAHAYFM 700 R20111S350087RaptorAMERICA
YAMAHAYFM 700 R20121S368207RaptorAMERICA
YAMAHAYFM 700 R20131PE79281RaptorAMERICA
YAMAHAYFM 700 R201486393EUROPE
YAMAHAYFM 700 R20141PE84677RaptorAMERICA
YAMAHAYFM 700 R20152LS89421RaptorAMERICA
YAMAHAYFM 700 R20162LS96391RaptorAMERICA
YAMAHAYFM 700 R20172LS101031RaptorAMERICA
YAMAHAYFM 700 R2018105161RaptorAMERICA
YAMAHAYFM 700 R2019109933RaptorALL
YAMAHAYFM 700 R2020117955RaptorALL
YAMAHAYFM 700 R2021147284RaptorALL
YAMAHAYFM 700 R2022156538RaptorALL
YAMAHAYFM 700 R2023156539RaptorALL
YAMAHAYFM 700 R2024169578RaptorALL
YAMAHAYFM 700 R2025186729RaptorALL
YAMAHAYFM 700 R2026209769RaptorALL
YAMAHAYFM 700 R2027209772RaptorALL
YAMAHAYFM 700 RSE20091S329993Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20101S329997Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20111S350089Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20121S368209Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20131PE79283Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20141PE84679Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE201486395Special EditionEUROPE
YAMAHAYFM 700 RSE20152LS89423Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20162LS96393Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20172LS101029Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE2018105159Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE2019109931Raptor Special EditionALL
YAMAHAYFM 700 RSE2020117953Raptor Special EditionALL
YAMAHAYFM 700 RSE2021147281Raptor Special EditionALL
YAMAHAYFM 700 RSE2022156528Raptor Special EditionALL
YAMAHAYFM 700 RSE2023156533Raptor Special EditionALL
YAMAHAYFM 700 RSE2024169583Raptor Special EditionALL
YAMAHAYFM 700 RSE2025186724Raptor Special EditionALL
YAMAHAYFM 700 RSE2026209775Raptor Special EditionALL
YAMAHAYFM 700 RSE2027209778Raptor Special EditionALL
