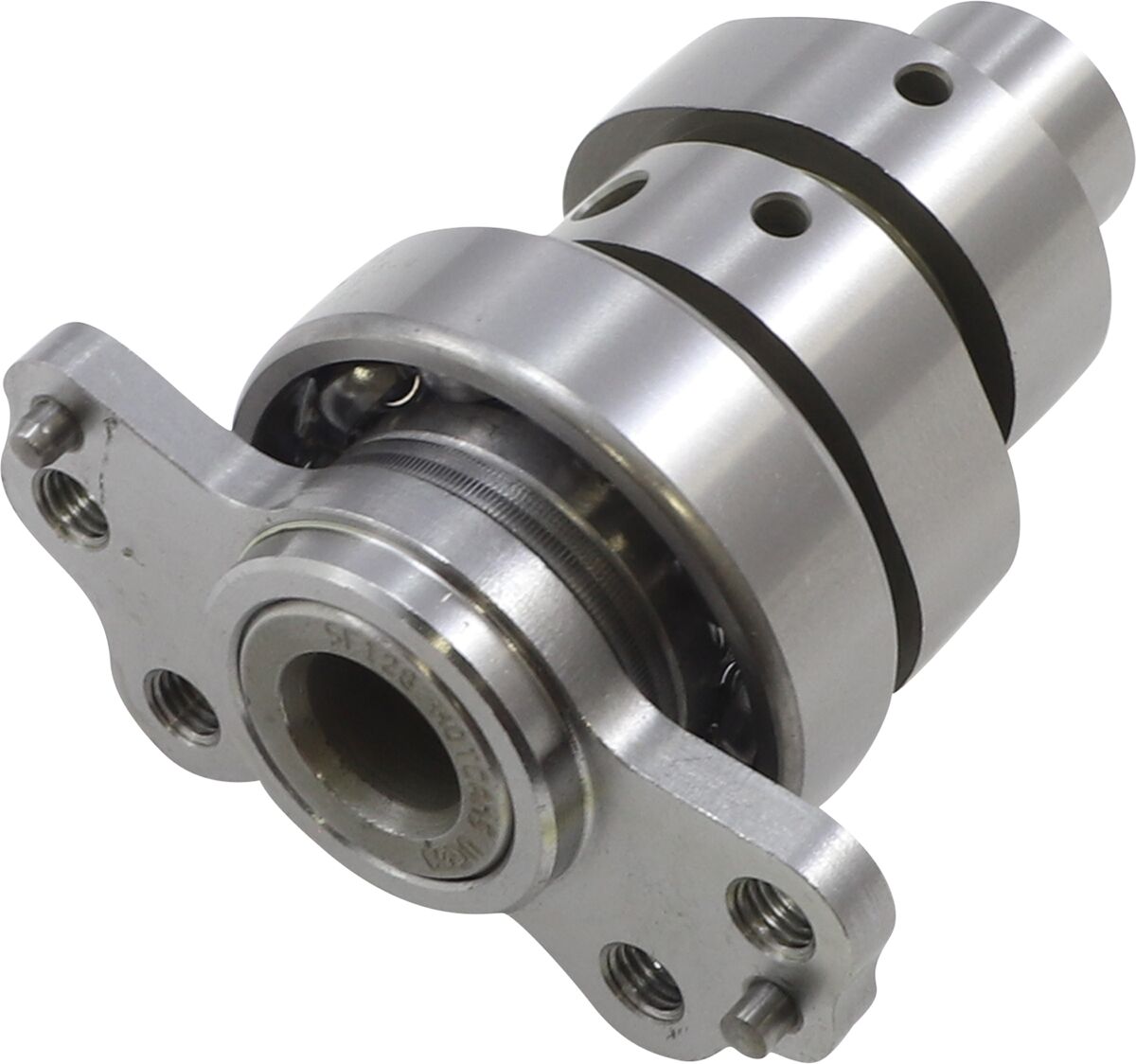

Camshaft Stage 3 Yamaha — Selected Models; See Fitment
Our price £263.20
Price includes applicable VAT. Delivery calculated separately.
Choose the exact model and year to view its supplier application.
Product details
Camshaft Stage 3 Computer Numerical Control (CNC) from 8620 billet steel and case harden Designed and dyno proven in the USA Engineered by using valvetrain software Adds a 5%-10% power gain Designed for peak top end horsepower. Engineered to be drop in cams that use stock valve springs (unless otherwise noted). Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end. Drastically improves top-end with over rev, with almost no loss in high rpm power. Uses stock valve springs and rockers. Uses stock auto-decompression mechanism. For single cam engines. Intake Valve Lash: 0.100 mm Exhaust Valve Lash: 0.180 mm.
Supplier reference: 09250508
Manufacturer reference: 4133-3
Dimensions & specification
- Intake Lift Metric
- 10.30 mm
- Riding Style
- ATV
- Application
- Exhaust| Intake
- Exhaust Lift
- 8,60 mm
- Exhaust Duration
- 255°
- Intake Duration
- 268°
- Intake Lift
- 10,30 mm
- Intake Duration Imperial
- 268°
- Exhaust Lift Metric
- 8.60 mm
- Exhaust Lobe Centerline
- 102°
- Exhaust Duration Imperial
- 255°
- Intake Lobe Centerline
- 112,500°
- Intake Lobe Centerline Imperial
- 112.500°
- Exhaust Lobe Centerline Imperial
- 102°
- Type
- Stage 3
- Product Name
- Camshaft
- Units
- Each
Delivery & returns
UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.
The right part starts
with the right details.
Compare your model, year and exact variant, then check the number on your original part.
Vehicle fitment
All 43 supplier-listed applications. Match your complete model, year, position and any notes.
| Make | Model & variant | Year | Vehicle type | Vehicle ID | Variant | Market |
|---|---|---|---|---|---|---|
| YAMAHA | YFM 700 | 2013 | 1PE | 82117 | Raptor | AMERICA |
| YAMAHA | YFM 700 | 2014 | 1PE | 84675 | Raptor | AMERICA |
| YAMAHA | YFM 700 | 2015 | 2LS | 89419 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2009 | 1S3 | 29991 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2010 | 1S3 | 29995 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2011 | 1S3 | 50087 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2012 | 1S3 | 68207 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2013 | 1PE | 79281 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2014 | 86393 | EUROPE | ||
| YAMAHA | YFM 700 R | 2014 | 1PE | 84677 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2015 | 2LS | 89421 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2016 | 2LS | 96391 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2017 | 2LS | 101031 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2018 | 105161 | Raptor | AMERICA | |
| YAMAHA | YFM 700 R | 2019 | 109933 | Raptor | ALL | |
| YAMAHA | YFM 700 R | 2020 | 117955 | Raptor | ALL | |
| YAMAHA | YFM 700 R | 2021 | 147284 | Raptor | ALL | |
| YAMAHA | YFM 700 R | 2022 | 156538 | Raptor | ALL | |
| YAMAHA | YFM 700 R | 2023 | 156539 | Raptor | ALL | |
| YAMAHA | YFM 700 R | 2024 | 169578 | Raptor | ALL | |
| YAMAHA | YFM 700 R | 2025 | 186729 | Raptor | ALL | |
| YAMAHA | YFM 700 R | 2026 | 209769 | Raptor | ALL | |
| YAMAHA | YFM 700 R | 2027 | 209772 | Raptor | ALL | |
| YAMAHA | YFM 700 RSE | 2009 | 1S3 | 29993 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2010 | 1S3 | 29997 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2011 | 1S3 | 50089 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2012 | 1S3 | 68209 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2013 | 1PE | 79283 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2014 | 1PE | 84679 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2014 | 86395 | Special Edition | EUROPE | |
| YAMAHA | YFM 700 RSE | 2015 | 2LS | 89423 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2016 | 2LS | 96393 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2017 | 2LS | 101029 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2018 | 105159 | Raptor Special Edition | AMERICA | |
| YAMAHA | YFM 700 RSE | 2019 | 109931 | Raptor Special Edition | ALL | |
| YAMAHA | YFM 700 RSE | 2020 | 117953 | Raptor Special Edition | ALL | |
| YAMAHA | YFM 700 RSE | 2021 | 147281 | Raptor Special Edition | ALL | |
| YAMAHA | YFM 700 RSE | 2022 | 156528 | Raptor Special Edition | ALL | |
| YAMAHA | YFM 700 RSE | 2023 | 156533 | Raptor Special Edition | ALL | |
| YAMAHA | YFM 700 RSE | 2024 | 169583 | Raptor Special Edition | ALL | |
| YAMAHA | YFM 700 RSE | 2025 | 186724 | Raptor Special Edition | ALL | |
| YAMAHA | YFM 700 RSE | 2026 | 209775 | Raptor Special Edition | ALL | |
| YAMAHA | YFM 700 RSE | 2027 | 209778 | Raptor Special Edition | ALL |
