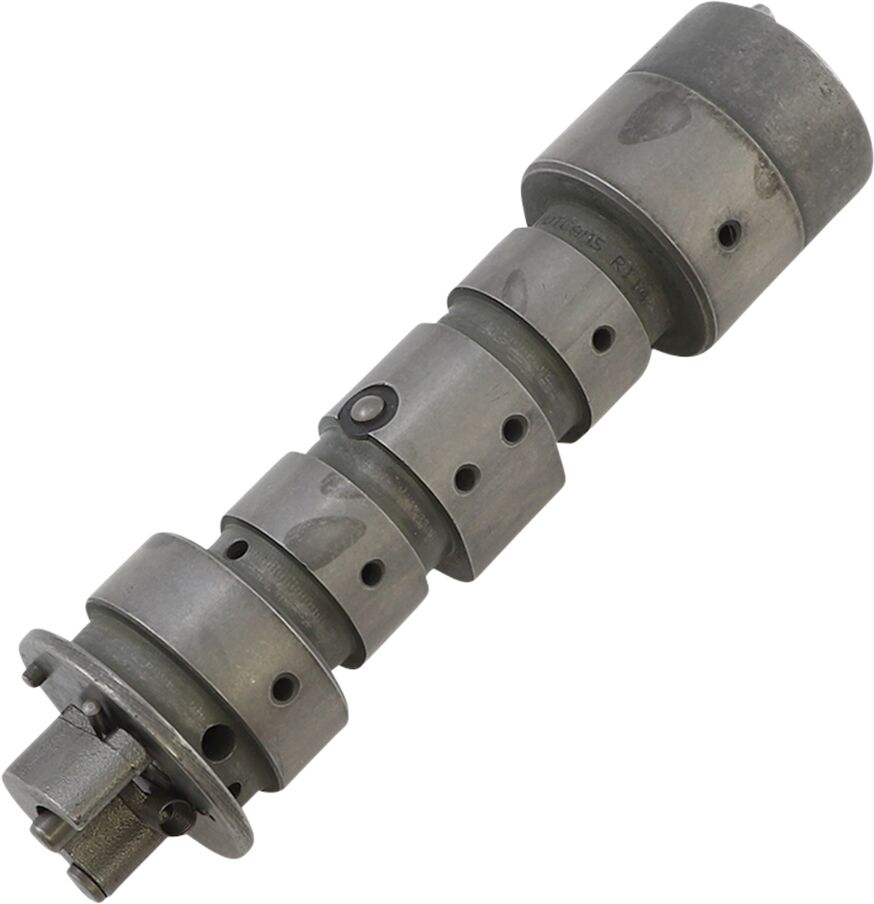

Camshaft Stage 2 Polaris — Selected Models; See Fitment

HOT CAMSPart no. 5247-2

Our price £360.22

RRP £379.18Save £18.96 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

Camshaft Stage 2 Computer Numerical Control (CNC) from 8620 billet steel and case harden Designed and dyno proven in the USA Engineered by using valvetrain software Adds a 5%-10% power gain Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end Designed for mid to top end gains. Engineered to be drop in cams that use stock valve springs (unless otherwise noted). Improved peak torque and increased mid range to top end horsepower with no loss on low end torque. Uses stock valve springs and rockers. Decompression mechanism is included. For single cam engine. Intake Valve Lash: 0.150 mm. Exhaust Valve Lash: 0.150 mm.

Supplier reference: 09250702
Manufacturer reference: 5247-2

Dimensions & specification
Units
Each
Type
Stage 2
Exhaust Lift Metric
8.51 mm
Exhaust Duration Imperial
223°
Intake Lobe Centerline Imperial
107°
Intake Lift Metric
8.51 mm
Exhaust Lobe Centerline
106°
Application
Exhaust| Intake
Product Name
Camshaft
Intake Lift
8,51 mm
Riding Style
ATV| UTV
Intake Lobe Centerline
107°
Exhaust Lobe Centerline Imperial
106°
Intake Duration Imperial
223°
Exhaust Lift
8,51 mm
Exhaust Duration
223°
Intake Duration
223°
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 102 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for 5247-2
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
POLARISHAWKEYE 400 HO 2x42011MB4684595ALL
POLARISHAWKEYE 400 HO 2x42012MB4684597ALL
POLARISHAWKEYE 400 HO 2x42013MB4684599ALL
POLARISHAWKEYE 400 HO 2x42013MB4684601HDALL
POLARISHAWKEYE 400 HO 2x42014MB4684603HDALL
POLARISRANGER 400 4X42010RH4535671ALL
POLARISRANGER 400 4X42011RH4553639ALL
POLARISRANGER 400 4X42012RH4567775ALL
POLARISRANGER 400 4X42013RH4579029ALL
POLARISRANGER 400 4X42014RH4584457ALL
POLARISRANGER 500 2X42006RB5035795ALL
POLARISRANGER 500 2X42007RB5035801ALL
POLARISRANGER 500 2X42008RB5035805ALL
POLARISRANGER 500 2X42009RB5035809ALL
POLARISRANGER 500 4X42006RB5035797ALL
POLARISRANGER 500 CREW 4X42011WH5053645ALL
POLARISRANGER 500 CREW 4X42012WH5067783ALL
POLARISRANGER 500 CREW 4X42013WH5079037ALL
POLARISRANGER 500 EFI 4X42006RD5035799ALL
POLARISRANGER 500 EFI 4X42007RH5035803ALL
POLARISRANGER 500 EFI 4X42008RH5035807ALL
POLARISRANGER 500 EFI 4X42009HH5035811ALL
POLARISRANGER 500 EFI 4X42010TH5035813ALL
POLARISRANGER 500 EFI 4X42011RH5053643ALL
POLARISRANGER 500 EFI 4X42012RH5067773ALL
POLARISRANGER 500 EFI 4X42013RH5079027ALL
POLARISSCRAMBLER 500 2X42001BA5035823ALL
POLARISSCRAMBLER 500 2X42002BA5035825ALL
POLARISSCRAMBLER 500 4X41998BC5035829ALL
POLARISSCRAMBLER 500 4X41998BG5035831ALL
POLARISSCRAMBLER 500 4X41999BG5035833ALL
POLARISSCRAMBLER 500 4X42000BG5035835ALL
POLARISSCRAMBLER 500 4X42001BG5035837ALL
POLARISSCRAMBLER 500 4X42002BG5035839ALL
POLARISSCRAMBLER 500 4X42003BG5035841ALL
POLARISSCRAMBLER 500 4X42004BG5035843ALL
POLARISSCRAMBLER 500 4X42005BG5035845ALL
POLARISSCRAMBLER 500 4X42006BG5035847ALL
POLARISSCRAMBLER 500 4X42007BG50A35849AMERICA
POLARISSCRAMBLER 500 4X42007BA50F35857EUROPE
POLARISSCRAMBLER 500 4X42008BG50A35851AMERICA
POLARISSCRAMBLER 500 4X42008BA50F35859EUROPE
POLARISSCRAMBLER 500 4X42009BG50A35853AMERICA
POLARISSCRAMBLER 500 4X42009BA50F35861EUROPE
POLARISSCRAMBLER 500 4X42010NG50A35855AMERICA
POLARISSCRAMBLER 500 4X42010NG50F35863EUROPE
POLARISSCRAMBLER 500 4X42011NG50A53647AMERICA
POLARISSCRAMBLER 500 4X42011NG50AF78119EUROPE
POLARISSCRAMBLER 500 4X42012NG50A67801AMERICA
POLARISSCRAMBLER 500 4X42012NG50AF78121EUROPE
POLARISSPORTSMAN 400 HO 4X42008LH4635665ALL
POLARISSPORTSMAN 400 HO 4X42009LH4635667ALL
POLARISSPORTSMAN 400 HO 4X42010LH4635669ALL
POLARISSPORTSMAN 400 HO 4X42011MH4653641ALL
POLARISSPORTSMAN 400 HO 4X42012MH4667759ALL
POLARISSPORTSMAN 400 HO 4X42013MH4679077ALL
POLARISSPORTSMAN 400 HO 4X42014MH4684521ALL
POLARISSPORTSMAN 450 4X42006MH4635743ALL
POLARISSPORTSMAN 450 4X42007MH4635745ALL
POLARISSPORTSMAN 500 6X62001CL5035867ALL
POLARISSPORTSMAN 500 6X62002CL5035869ALL
POLARISSPORTSMAN 500 6X62003CL5035871ALL
POLARISSPORTSMAN 500 6X62004CL5035873ALL
POLARISSPORTSMAN 500 6X62005CL5035875ALL
POLARISSPORTSMAN 500 6X62006CL5035877ALL
POLARISSPORTSMAN 500 6X62007CL5035879ALL
POLARISSPORTSMAN 500 6X62008CL5035881ALL
POLARISSPORTSMAN 500 EFI 4X42006MH5035917ALL
POLARISSPORTSMAN 500 EFI 4X42007MH5035919ALL
POLARISSPORTSMAN 500 EFI 4X42008MN5035923ALL
POLARISSPORTSMAN 500 EFI 4X42008DN5035933TouringALL
POLARISSPORTSMAN 500 EFI 4X42009MN5035927ALL
POLARISSPORTSMAN 500 EFI 4X42009DN5035931TouringALL
POLARISSPORTSMAN 500 EFI 4X42009MN5035935TractorEUROPE
POLARISSPORTSMAN 500 EFI 4X42010MN5035937TractorEUROPE
POLARISSPORTSMAN 500 EFI 4X42011MN5084637Forest TractorEUROPE
POLARISSPORTSMAN 500 EFI 4X42012MN5084639Forest TractorEUROPE
POLARISSPORTSMAN 500 EFI 4X42013MN5084641Forest TractorEUROPE
POLARISSPORTSMAN 500 EFI X2 4X42007TH5035921ALL
POLARISSPORTSMAN 500 EFI X2 4X42008TN5035925ALL
POLARISSPORTSMAN 500 EFI X2 4X42009TN5035929ALL
POLARISSPORTSMAN 500 HO (CARB) 4X42006MH5035905ALL
POLARISSPORTSMAN 500 HO (CARB) 4X42007MH5035907ALL
POLARISSPORTSMAN 500 HO (CARB) 4X42008MH5035909ALL
POLARISSPORTSMAN 500 HO (CARB) 4X42009MH5035911ALL
POLARISSPORTSMAN 500 HO (CARB) 4X42010MH5035913ALL
POLARISSPORTSMAN 500 HO (CARB) 4X42010DH5035915TouringALL
POLARISSPORTSMAN 500 HO (CARB) 4X42011MH5053649ALL
POLARISSPORTSMAN 500 HO (CARB) 4X42011MH5084633ForestEUROPE
POLARISSPORTSMAN 500 HO (CARB) 4X42011DH5053651TouringALL
POLARISSPORTSMAN 500 HO (CARB) 4X42012MH5067755ALL
POLARISSPORTSMAN 500 HO (CARB) 4X42012MH5067757ForestEUROPE
POLARISSPORTSMAN 500 HO (CARB) 4X42012DH5067749TouringALL
POLARISSPORTSMAN 500 HO (CARB) 4X42013MH5079075ALL
POLARISSPORTSMAN 500 HO (CARB) 4X42013MH5084635ForestALL
POLARISSPORTSMAN 500 HO (CARB) 4X42013DH5079085TouringALL
POLARISSPORTSMAN 500 HO (EARLY) 4X42005CH5035901ALL
POLARISSPORTSMAN 500 HO (LATE) 4X42005MH5035903ALL
POLARISSPORTSMAN 500 HO 4X42001CH5035893ALL
POLARISSPORTSMAN 500 HO 4X42002CH5035895ALL
POLARISSPORTSMAN 500 HO 4X42003CH5035897ALL
POLARISSPORTSMAN 500 HO 4X42004CH5035899ALL
