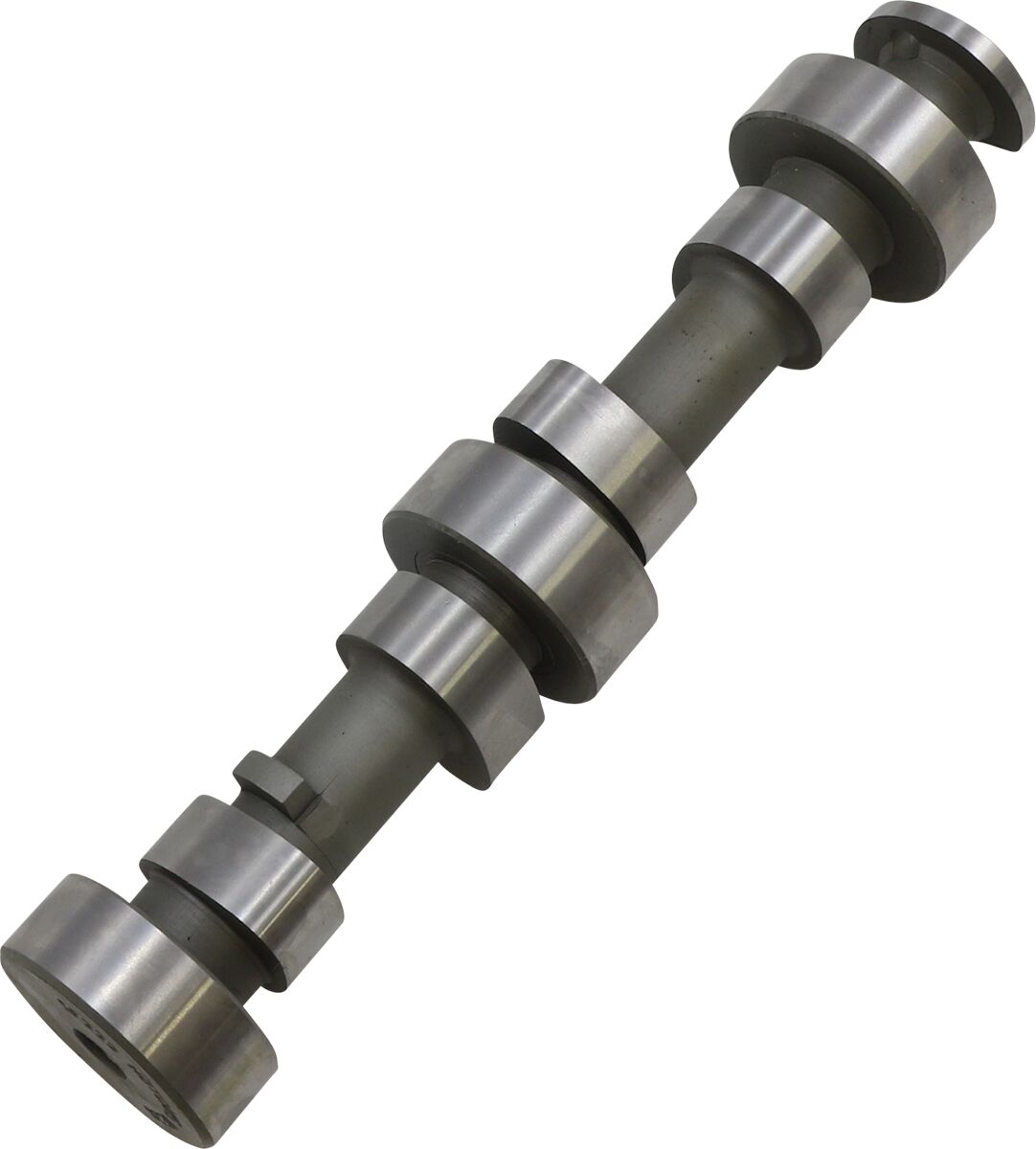

Camshaft Stage 1 Polaris Ranger / Ranger RZR / Sportsman — Selected Models; See Fitment
Our price £408.54
Price includes applicable VAT. Delivery calculated separately.
Choose the exact model and year to view its supplier application.
Product details
Camshaft Stage 1 Designed and dyno proven in the USA Engineered by using valvetrain software Adds a 5%-10% power gain CNC machined from 8620 billet, case hardened steel for an exact fit and lobe profile Select cams feature Hot Cams Improved Throttle Design (I.T.R.) technology; these cams improve throttle response throughout the entire rpm range while providing excellent power gains through the mid-range and top-end Designed for low end torque. Engineered to be drop in cams that use stock valve springs (unless otherwise noted). Big horsepower gains from 2500 rpm to 5500 rpm with almost no loss on top to redline. New Polaris hydraulic lifters must be installed with this camshaft. Uses stock valve springs, pushrods and rockers. Designed with I.T.R. technology. For single cam engine.
Supplier reference: 09251253
Manufacturer reference: HC00051
Dimensions & specification
- Exhaust Duration Imperial
- 235°
- Exhaust Lobe Centerline
- 105°
- Intake Duration Imperial
- 240°
- Exhaust Lift
- 10,41 mm
- Intake Duration
- 240°
- Intake Lobe Centerline Imperial
- 105°
- Riding Style
- ATV| UTV
- Product Name
- Camshaft
- Units
- Each
- Intake Lift
- 10,67 mm
- Intake Lift Metric
- 10.67 mm
- Exhaust Lift Metric
- 10.41 mm
- Intake Lobe Centerline
- 105°
- Type
- Stage 1
- Exhaust Duration
- 235°
- Exhaust Lobe Centerline Imperial
- 105°
- Application
- Exhaust| Intake
Delivery & returns
UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.
The right part starts
with the right details.
Compare your model, year and exact variant, then check the number on your original part.
Vehicle fitment
All 55 supplier-listed applications. Match your complete model, year, position and any notes.
| Make | Model & variant | Year | Vehicle type | Vehicle ID | Variant | Market |
|---|---|---|---|---|---|---|
| POLARIS | RANGER 800 CREW 4X4 | 2010 | WH76/WY76 | 36053 | ALL | |
| POLARIS | RANGER 800 CREW 4X4 | 2011 | WH76/WY76 | 53669 | ALL | |
| POLARIS | RANGER 800 CREW 4X4 | 2011 | WH76/WY76 | 53671 | EPS | ALL |
| POLARIS | RANGER 800 CREW 4X4 | 2012 | WH76 | 67781 | ALL | |
| POLARIS | RANGER 800 CREW 4X4 | 2012 | WH76 | 67779 | EPS | ALL |
| POLARIS | RANGER 800 CREW 4X4 | 2013 | WH76 | 79033 | ALL | |
| POLARIS | RANGER 800 CREW 4X4 | 2013 | WH7E | 79035 | EPS | ALL |
| POLARIS | RANGER 800 CREW 4X4 | 2014 | WH76 | 84461 | ALL | |
| POLARIS | RANGER 800 EFI 4X4 | 2011 | TH76/TY76 | 53665 | ALL | |
| POLARIS | RANGER 800 EFI 4X4 | 2011 | TH76/TY76 | 53667 | EPS | ALL |
| POLARIS | RANGER 800 EFI 4X4 | 2012 | TH76 | 67765 | ALL | |
| POLARIS | RANGER 800 EFI 4X4 | 2012 | TH7E | 67763 | EPS | ALL |
| POLARIS | RANGER 800 EFI 4X4 | 2013 | TH76 | 79019 | ALL | |
| POLARIS | RANGER 800 EFI 4X4 | 2013 | RH76 | 79025 | Midsize | ALL |
| POLARIS | RANGER 800 EFI 4X4 | 2014 | TH76 | 84439 | ALL | |
| POLARIS | RANGER 800 EFI 4X4 | 2014 | TH7E | 84441 | EPS LE | ALL |
| POLARIS | RANGER 800 EFI 4X4 | 2014 | RH7E | 84451 | EPS Midsize LE | ALL |
| POLARIS | RANGER 800 EFI 4X4 | 2014 | RH76 | 84449 | Midsize | ALL |
| POLARIS | RANGER 800 EFI 6x6 | 2011 | HR76 | 53673 | ALL | |
| POLARIS | RANGER 800 EFI 6x6 | 2012 | HR76 | 67769 | ALL | |
| POLARIS | RANGER 800 EFI 6x6 | 2013 | HR76 | 79023 | ALL | |
| POLARIS | RANGER 800 EFI 6x6 | 2014 | HR76 | 84447 | ALL | |
| POLARIS | RANGER 800 EFI 6x6 | 2015 | RAA76 | 95851 | ALL | |
| POLARIS | RANGER 800 EFI 6x6 | 2016 | RAA76 | 95853 | ALL | |
| POLARIS | RANGER 800 HD 4X4 | 2011 | TH76 | 53663 | EPS | ALL |
| POLARIS | RANGER 800 HD 4X4 | 2012 | TH76 | 67767 | EPS | ALL |
| POLARIS | RANGER RZR 4 800 4X4 | 2010 | XH76 | 36065 | ALL | |
| POLARIS | RANGER RZR 800 4X4 | 2008 | VH76 | 36055 | ALL | |
| POLARIS | RANGER RZR 800 4X4 | 2009 | VH76 | 36057 | ALL | |
| POLARIS | RANGER RZR 800 4X4 | 2010 | VH76 | 36061 | ALL | |
| POLARIS | RANGER RZR 800 4X4 | 2011 | VH76 | 53675 | ALL | |
| POLARIS | RANGER RZR 800 4X4 | 2012 | VH76 | 67787 | ALL | |
| POLARIS | RANGER RZR 800 4X4 | 2013 | VH76 | 79041 | ALL | |
| POLARIS | RANGER RZR 800 4X4 | 2014 | VH76 | 84471 | ALL | |
| POLARIS | RANGER RZR 800 4X4 | 2014 | VH7E | 84473 | EPS LE | ALL |
| POLARIS | RANGER RZR 800 4X4 | 2014 | VH7E | 84475 | EPS XC | ALL |
| POLARIS | RANGER RZR S 800 4X4 | 2009 | VH76 | 36059 | ALL | |
| POLARIS | RANGER RZR S 800 4X4 | 2010 | VH76 | 36063 | ALL | |
| POLARIS | RANGER RZR S 800 4X4 | 2011 | VE76 | 53679 | ALL | |
| POLARIS | RANGER RZR S 800 4X4 | 2012 | VE76 | 67793 | ALL | |
| POLARIS | RANGER RZR S 800 4X4 | 2013 | VE76 | 79053 | ALL | |
| POLARIS | RANGER RZR S 800 4X4 | 2014 | VE76 | 84481 | ALL | |
| POLARIS | RANGER RZR S 800 4X4 | 2014 | VE7E | 84483 | EPS LE | ALL |
| POLARIS | SPORTSMAN 800 EFI 4X4 | 2005 | MH76 | 36019 | ALL | |
| POLARIS | SPORTSMAN 800 EFI 4X4 | 2006 | MH76 | 36021 | ALL | |
| POLARIS | SPORTSMAN 800 EFI 4X4 | 2007 | MH76 | 36023 | ALL | |
| POLARIS | SPORTSMAN 800 EFI 4X4 | 2008 | MH76 | 36025 | ALL | |
| POLARIS | SPORTSMAN 800 EFI 4X4 | 2008 | DN76 | 36031 | Touring | ALL |
| POLARIS | SPORTSMAN 800 EFI 4X4 | 2009 | DN76 | 36035 | Touring | ALL |
| POLARIS | SPORTSMAN 800 EFI 6x6 | 2009 | CL76 | 36041 | Big Boss | ALL |
| POLARIS | SPORTSMAN 800 EFI HO 4X4 | 2008 | MN76 | 36027 | ALL | |
| POLARIS | SPORTSMAN 800 EFI HO 4X4 | 2009 | MN76 | 36033 | ALL | |
| POLARIS | SPORTSMAN 800 EFI X2 4X4 | 2007 | TH76 | 36037 | ALL | |
| POLARIS | SPORTSMAN 800 EFI X2 4X4 | 2008 | TN76 | 36029 | LE | ALL |
| POLARIS | SPORTSMAN 800 EFI X2 4X4 | 2009 | TN76 | 36039 | ALL |
