Standard Bore High Compression Cylinder Kit Yamaha YFM 700 R 2012-2014 (EUROPE) / Yamaha YFM 700 R Raptor 2006-2014 (AMERICA) / Yamaha YFM 700 RSE Raptor Special Edition 2007-2014 (AMERICA) / Yamaha YFM 700 RSE Special Edition 2012-2014 (EUROPE)

CYLINDER WORKSPart no. 20004-K01HC

Our price £758.61

RRP £798.53Save £39.92 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

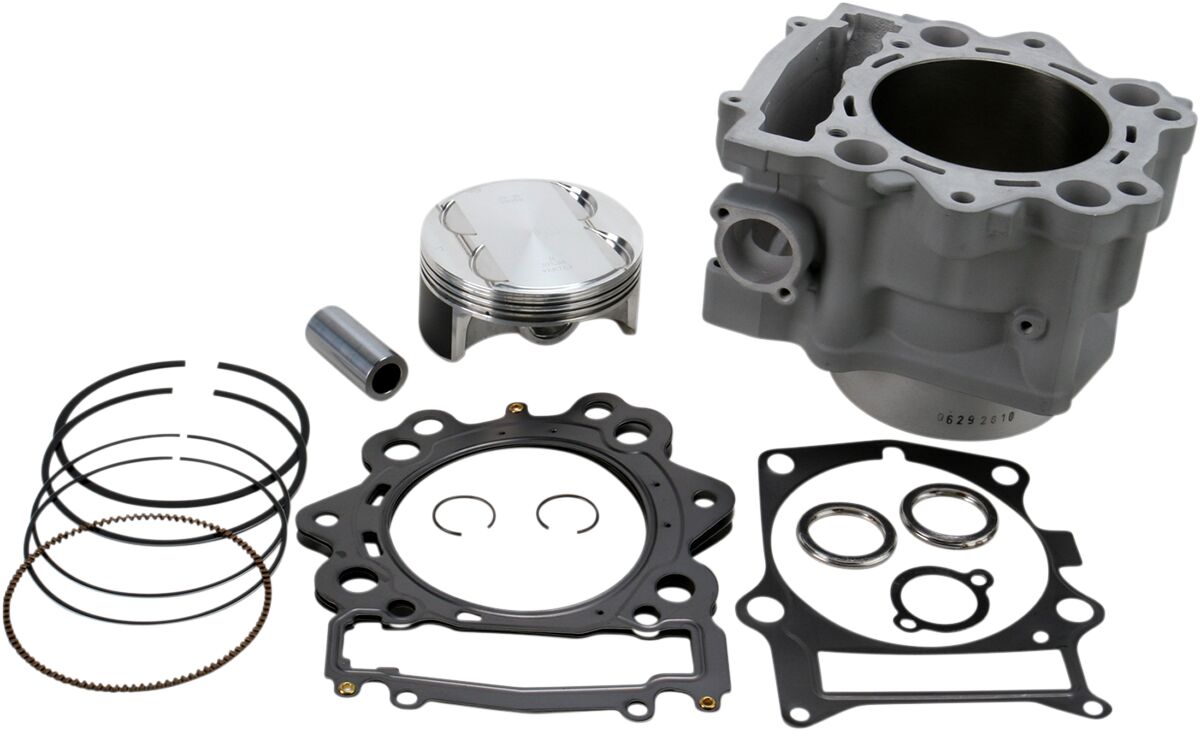

Standard Bore High Compression Cylinder Kit Ready-to-install, direct bolt-on cylinders require no re-plating and look virtually identical to the OEM cylinders Cylinder kit comes with matched Vertex pistons to ensure longevity, performance and reduced engine noise Kit includes cylinder, piston, rings, pins, clips and top end gasket kit Nickel silicon carbide-plated for long life Made in the USA Kit Includes: • Cylinder • Piston Kit • Top-End Gasket Kit

Supplier reference: 09310305
Manufacturer reference: 20004-K01HC

Dimensions & specification
Cylinder Diameter
102,00 mm
Bore - Oversize Metric
Standard
Color/Finish
Gray
Riding Style
ATV
Displacement
686 cc
Style
High Compression
Units
Kit
Compression Ratio
11,0:1
Cylinder Diameter Metric
102.00 mm
Compression Ratio Imperial
11.0:1
Engine Type
4-Cycle
Bore - Oversize
Standard
Product Name
Cylinder Kit
Cylinder Bore Coating
Nickel-Silicon Carbide
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 23 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for 20004-K01HC
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
YAMAHAYFM 700 R20061S329973RaptorAMERICA
YAMAHAYFM 700 R20071S329977RaptorAMERICA
YAMAHAYFM 700 R20081S329985RaptorAMERICA
YAMAHAYFM 700 R20091S329991RaptorAMERICA
YAMAHAYFM 700 R20101S329995RaptorAMERICA
YAMAHAYFM 700 R20111S350087RaptorAMERICA
YAMAHAYFM 700 R201268243EUROPE
YAMAHAYFM 700 R20121S368207RaptorAMERICA
YAMAHAYFM 700 R201379391EUROPE
YAMAHAYFM 700 R20131PE79281RaptorAMERICA
YAMAHAYFM 700 R201486393EUROPE
YAMAHAYFM 700 R20141PE84677RaptorAMERICA
YAMAHAYFM 700 RSE20071S329981Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20081S329987Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20091S329993Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20101S329997Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20111S350089Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE20121S368209Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE201268245Special EditionEUROPE
YAMAHAYFM 700 RSE20131PE79283Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE201379393Special EditionEUROPE
YAMAHAYFM 700 RSE20141PE84679Raptor Special EditionAMERICA
YAMAHAYFM 700 RSE201486395Special EditionEUROPE
Standard Bore High Compression Cylinder Kit Yamaha YFM 700 R 2012-2014 (EUROPE) / Yamaha YFM 700 R Raptor 2006-2014 (AMERICA) / Yamaha YFM 700 RSE Raptor Special Edition 2007-2014 (AMERICA) / Yamaha YFM 700 RSE Special Edition 2012-2014 (EUROPE)
