Cylinder Kit Yamaha — Selected Models; See Fitment

CYLINDER WORKSPart no. 20104-K01

Our price £713.82

RRP £751.38Save £37.56 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

Cylinder Kit Ready-to-install, direct bolt-on cylinders require no re-plating and look virtually identical to the OEM cylinders Cylinder kit includes matched Vertex pistons to ensure longevity, performance and reduced engine noise Nickel Silicon Carbide plated for long life Kit comes complete with gaskets, cylinder, piston, rings, pin and clips Made in the USA Big bore cylinders do not require machine work. Kit Includes: • Cylinder • Piston Kit • Top-End Gasket Kit

Supplier reference: 09310374
Manufacturer reference: 20104-K01

Dimensions & specification
Units
Kit
Bore - Oversize
Standard
Bore - Oversize Metric
Standard
Product Name
Cylinder Kit
Compression Ratio Imperial
9.2:1
Compression Ratio
9,2:1
Color/Finish
Gray
Cylinder Bore Coating
Nickel-Silicon Carbide
Cylinder Diameter Metric
102.00 mm
Riding Style
ATV| UTV
Engine Type
4-Cycle
Displacement
686 cc
Cylinder Diameter
102,00 mm
Style
Standard
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 65 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for 20104-K01
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
YAMAHAYFM 700 FG 4X420081HP30009GrizzlyAMERICA
YAMAHAYFM 700 FG 4X420091HP30021GrizzlyAMERICA
YAMAHAYFM 700 FG 4X420101HP50079GrizzlyAMERICA
YAMAHAYFM 700 FG 4X420111HP50067GrizzlyAMERICA
YAMAHAYFM 700 FG 4X420121HP67823GrizzlyAMERICA
YAMAHAYFM 700 FG 4X420131HP79265GrizzlyAMERICA
YAMAHAYFM 700 FGH 4X420081HP30011Grizzly HunterAMERICA
YAMAHAYFM 700 FGH 4X420091HP30023Grizzly HunterAMERICA
YAMAHAYFM 700 FGH 4X420101HP50081Grizzly HunterAMERICA
YAMAHAYFM 700 FGH 4X420111HP78059Grizzly HunterAMERICA
YAMAHAYFM 700 FGH 4X420121HP67825Grizzly HunterAMERICA
YAMAHAYFM 700 FGH 4X420131HP79273Grizzly HunterAMERICA
YAMAHAYFM 700 FGP 4X420071HP29999Grizzly EPSAMERICA
YAMAHAYFM 700 FGP 4X420081HP30013Grizzly EPSAMERICA
YAMAHAYFM 700 FGP 4X420091HP30025Grizzly EPSAMERICA
YAMAHAYFM 700 FGP 4X420101HP30033Grizzly EPSAMERICA
YAMAHAYFM 700 FGP 4X420111HP50069Grizzly EPSAMERICA
YAMAHAYFM 700 FGP 4X420121HP67819Grizzly EPSAMERICA
YAMAHAYFM 700 FGP 4X420131HP79267Grizzly EPSAMERICA
YAMAHAYFM 700 FGP DU 4X420071HP30005Grizzly EPS Ducks Unlimited EditionAMERICA
YAMAHAYFM 700 FGP DU 4X420081HP30019Grizzly EPS Ducks Unlimited EditionAMERICA
YAMAHAYFM 700 FGP DU 4X420091HP30031Grizzly EPS Ducks Unlimited EditionAMERICA
YAMAHAYFM 700 FGP DU 4X420101HP30039Grizzly EPS Ducks Unlimited EditionAMERICA
YAMAHAYFM 700 FGP OH 4X420071HP30007Grizzly EPS Outdoorsman EditionAMERICA
YAMAHAYFM 700 FGP SE 4X420071HP30003Grizzly EPS Special EditionAMERICA
YAMAHAYFM 700 FGP SE 4X420091HP30027Grizzly EPS Special EditionAMERICA
YAMAHAYFM 700 FGP SE 4X420101HP30037Grizzly EPS SEAMERICA
YAMAHAYFM 700 FGP SE 4X420121HP67817Grizzly EPS SEAMERICA
YAMAHAYFM 700 FGP SE 4X420131HP79271Grizzly EPS SEAMERICA
YAMAHAYFM 700 FGP SP 4X420081HP30015Grizzly EPS Special EditionAMERICA
YAMAHAYFM 700 FGP SP 4X420111HP50073Grizzly EPS SEAMERICA
YAMAHAYFM 700 FGPH 4X420071HP30001Grizzly EPS HunterAMERICA
YAMAHAYFM 700 FGPH 4X420081HP30017Grizzly EPS HunterAMERICA
YAMAHAYFM 700 FGPH 4X420091HP30029Grizzly EPS HunterAMERICA
YAMAHAYFM 700 FGPH 4X420101HP30035Grizzly EPS HunterAMERICA
YAMAHAYFM 700 FGPH 4X420111HP50071Grizzly EPS HunterAMERICA
YAMAHAYFM 700 FGPH 4X420121HP67821Grizzly EPS HunterAMERICA
YAMAHAYFM 700 FGPH 4X420131HP79269Grizzly EPS HunterAMERICA
YAMAHAYFM 700 FWAN 4X4201268225Grizzly EPSEUROPE
YAMAHAYFM 700 FWAN 4X4201268223Grizzly EPS SEEUROPE
YAMAHAYFM 700 FWAN 4X4201379371Grizzly EPSEUROPE
YAMAHAYFM 700 FWAN 4X4201379373Grizzly EPS SEEUROPE
YAMAHAYXR 700 F 4X420085B430041RhinoAMERICA
YAMAHAYXR 700 F 4X420095B430053RhinoAMERICA
YAMAHAYXR 700 F 4X420105B4206582RhinoAMERICA
YAMAHAYXR 700 F 4X420115B450099RhinoAMERICA
YAMAHAYXR 700 F 4X4201268241RhinoALL
YAMAHAYXR 700 F 4X4201379395RhinoALL
YAMAHAYXR 700 F DU 4X420085B430043Rhino Ducks Unlimited EditionAMERICA
YAMAHAYXR 700 F DU 4X420095B430055Rhino Ducks Unlimited EditionAMERICA
YAMAHAYXR 700 F SE 4X420085B430047Rhino Special EditionAMERICA
YAMAHAYXR 700 F SE 4X4201268239Rhino SEEUROPE
YAMAHAYXR 700 F SE 4X4201379397Rhino SEEUROPE
YAMAHAYXR 700 F SP 4X420085B430051Rhino Sport EditionAMERICA
YAMAHAYXR 700 F SP 4X420095B430061Rhino Sport EditionAMERICA
YAMAHAYXR 700 F SP 4X420115B450101Rhino Sport EditionAMERICA
YAMAHAYXR 700 F SP 4X420121RB67847Rhino Sport EditionAMERICA
YAMAHAYXR 700 F SP 4X420131RB79295Rhino Sport EditionAMERICA
YAMAHAYXR 700 F SP2 4X420085B430049Rhino Special Edition 2AMERICA
YAMAHAYXR 700 F SP2 4X420095B430059Rhino Sport Edition 2AMERICA
YAMAHAYXR 700 FH 4X420085B430045Rhino HunterAMERICA
YAMAHAYXR 700 FH 4X420095B430057Rhino HunterAMERICA
YAMAHAYXR 700 FH 4X420115B450103Rhino HunterAMERICA
YAMAHAYXR 700 FH 4X420121RB67851Rhino Hunter RealtreeAMERICA
YAMAHAYXR 700 FH 4X420131RB79293Rhino Hunter EditionAMERICA

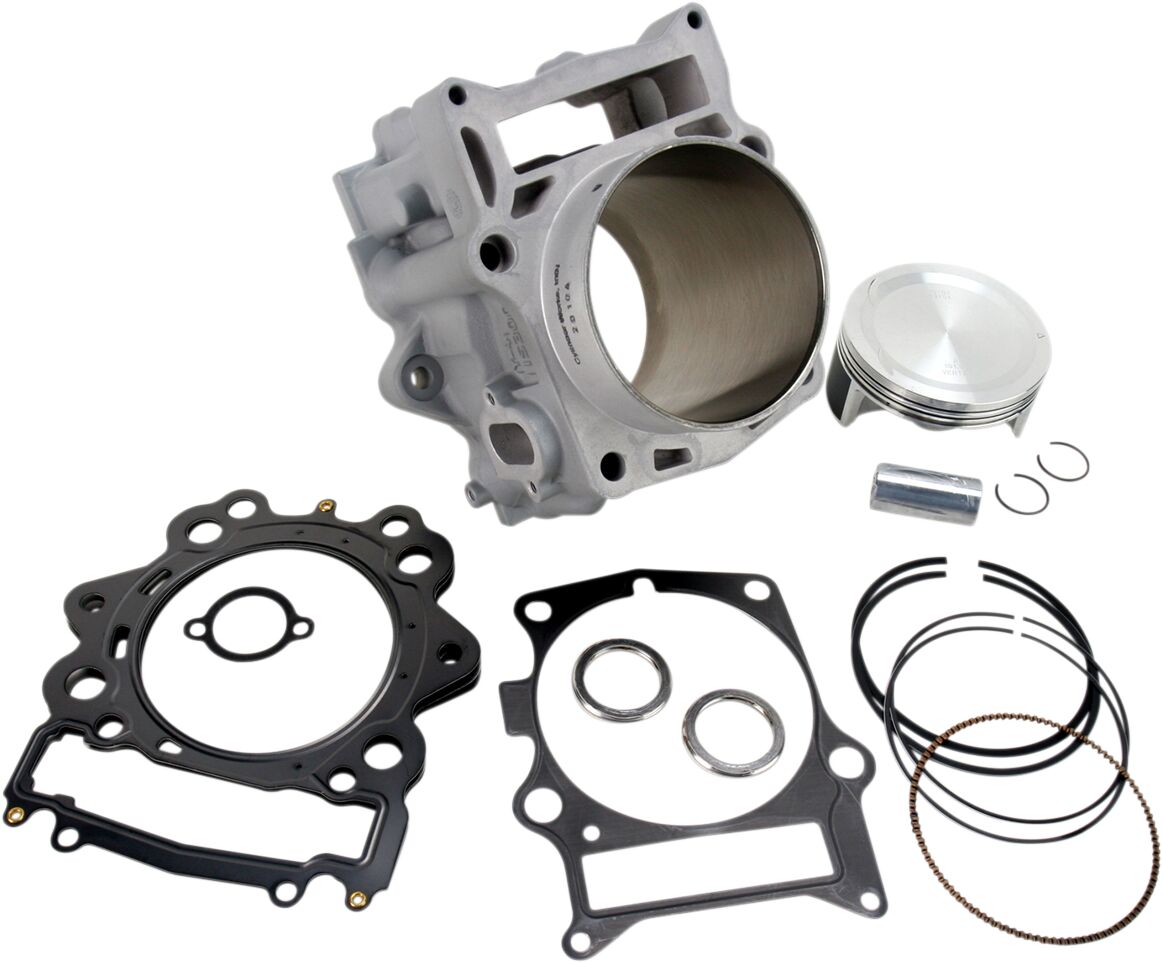

Cylinder Kit Yamaha — Selected Models; See Fitment
