Cylinder Kit Yamaha YFM 700 Raptor 2013-2014 (AMERICA) / Yamaha YFM 700 R Raptor 2006-2014 (AMERICA) / Yamaha YFM 700 RSE Raptor Special Edition 2007-2014 (AMERICA) / Yamaha YFM 700 RSE2 Raptor Special Edition 2 2007-2008 (AMERICA) / Yamaha YFM 700 RSP Raptor 50th Anniversary 2006 (AMERICA) / Yamaha YFM 700 RYR Raptor Gtyr Edition 2007 (AMERICA)
Our price £713.82
Price includes applicable VAT. Delivery calculated separately.
Choose the exact model and year to view its supplier application.
Product details

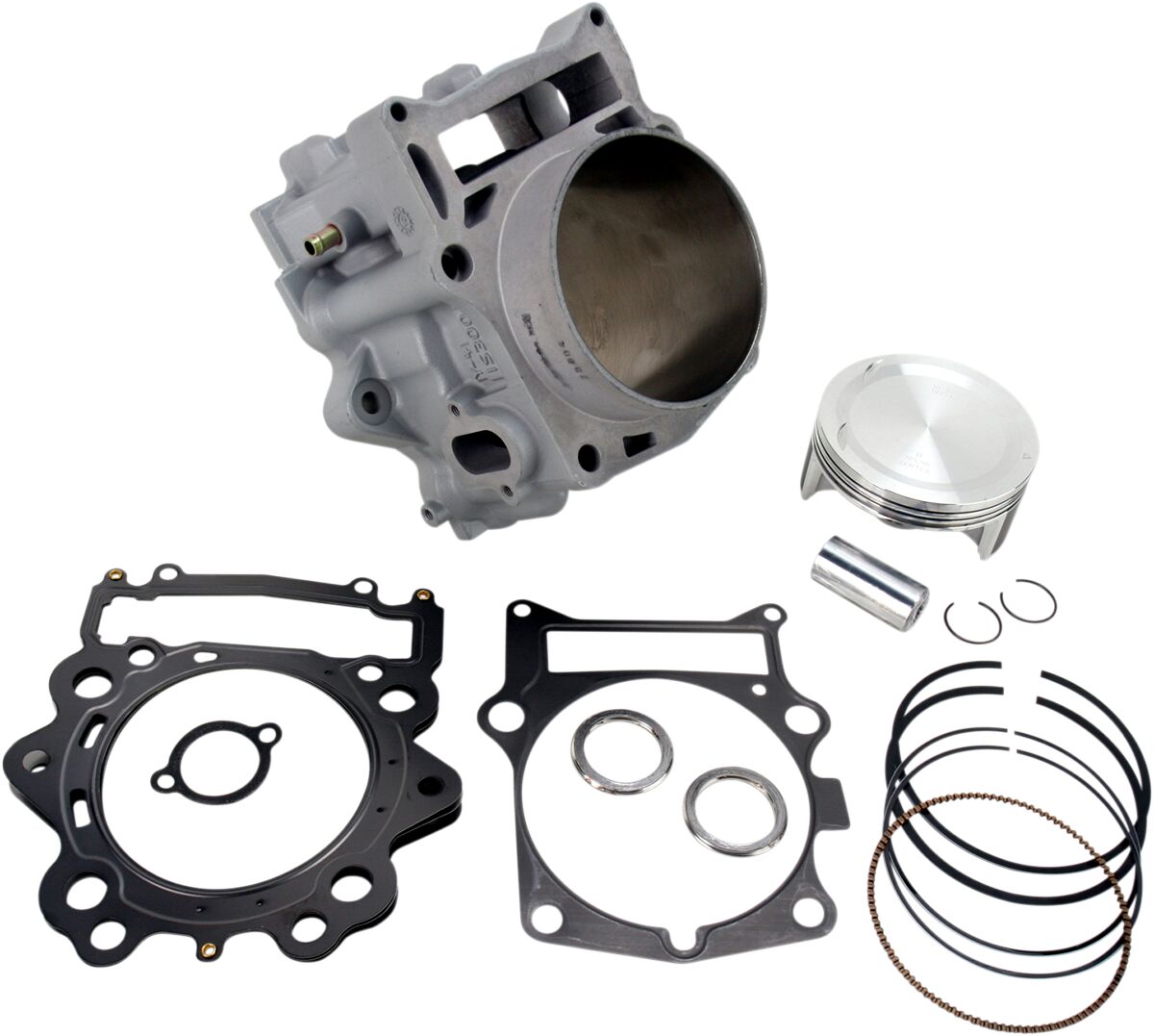

Cylinder Kit Ready-to-install, direct bolt-on cylinders require no re-plating and look virtually identical to the OEM cylinders Cylinder kit includes matched Vertex pistons to ensure longevity, performance and reduced engine noise Nickel Silicon Carbide plated for long life Kit comes complete with gaskets, cylinder, piston, rings, pin and clips Made in the USA Big bore cylinders do not require machine work. Kit Includes: • Cylinder • Piston Kit • Top-End Gasket Kit
Supplier reference: 09310379
Manufacturer reference: 20004-K01
Dimensions & specification
- Units
- Kit
- Cylinder Diameter
- 102,00 mm
- Product Name
- Cylinder Kit
- Cylinder Diameter Metric
- 102.00 mm
- Cylinder Bore Coating
- Nickel-Silicon Carbide
- Style
- Standard
- Compression Ratio Imperial
- 9.2:1
- Color/Finish
- Gray
- Riding Style
- ATV
- Compression Ratio
- 9,2:1
- Displacement
- 686 cc
- Engine Type
- 4-Cycle
- Bore - Oversize
- Standard
- Bore - Oversize Metric
- Standard
Delivery & returns
UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.
The right part starts
with the right details.
Compare your model, year and exact variant, then check the number on your original part.
Vehicle fitment
All 23 supplier-listed applications. Match your complete model, year, position and any notes.
| Make | Model & variant | Year | Vehicle type | Vehicle ID | Variant | Market |
|---|---|---|---|---|---|---|
| YAMAHA | YFM 700 | 2013 | 1PE | 82117 | Raptor | AMERICA |
| YAMAHA | YFM 700 | 2014 | 1PE | 84675 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2006 | 1S3 | 29973 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2007 | 1S3 | 29977 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2008 | 1S3 | 29985 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2009 | 1S3 | 29991 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2010 | 1S3 | 29995 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2011 | 1S3 | 50087 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2012 | 1S3 | 68207 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2013 | 1PE | 79281 | Raptor | AMERICA |
| YAMAHA | YFM 700 R | 2014 | 1PE | 84677 | Raptor | AMERICA |
| YAMAHA | YFM 700 RSE | 2007 | 1S3 | 29981 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2008 | 1S3 | 29987 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2009 | 1S3 | 29993 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2010 | 1S3 | 29997 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2011 | 1S3 | 50089 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2012 | 1S3 | 68209 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2013 | 1PE | 79283 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE | 2014 | 1PE | 84679 | Raptor Special Edition | AMERICA |
| YAMAHA | YFM 700 RSE2 | 2007 | 1S3 | 29983 | Raptor Special Edition 2 | AMERICA |
| YAMAHA | YFM 700 RSE2 | 2008 | 1S3 | 29989 | Raptor Special Edition 2 | AMERICA |
| YAMAHA | YFM 700 RSP | 2006 | 1S3 | 29975 | Raptor 50th Anniversary | AMERICA |
| YAMAHA | YFM 700 RYR | 2007 | 1S3 | 29979 | Raptor Gtyr Edition | AMERICA |
