Cylinder Kit Polaris Ranger / Ranger RZR / Sportsman — Selected Models; See Fitment

CYLINDER WORKSPart no. 60002-K05

Our price £813.24

RRP £856.03Save £42.79 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

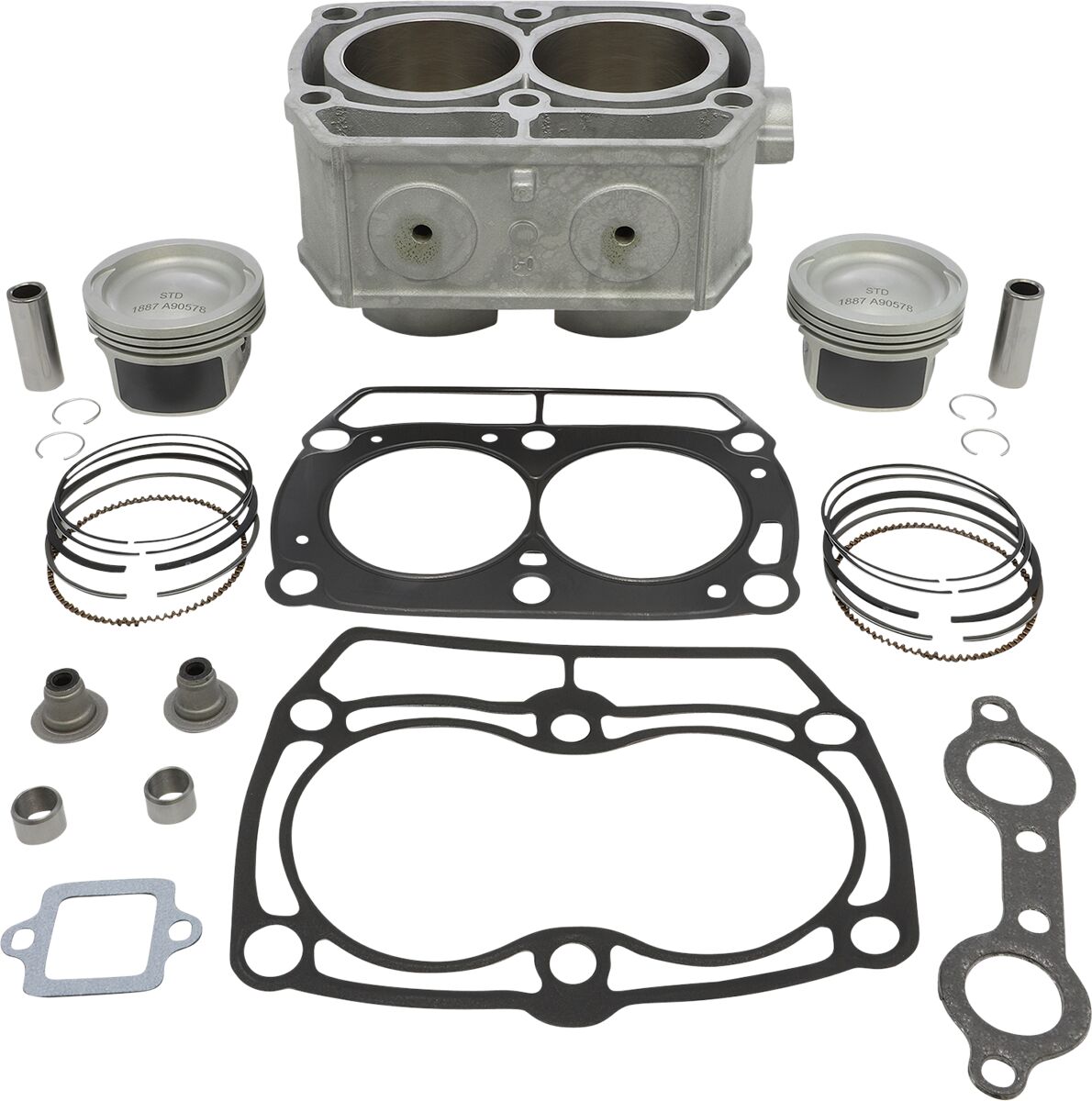

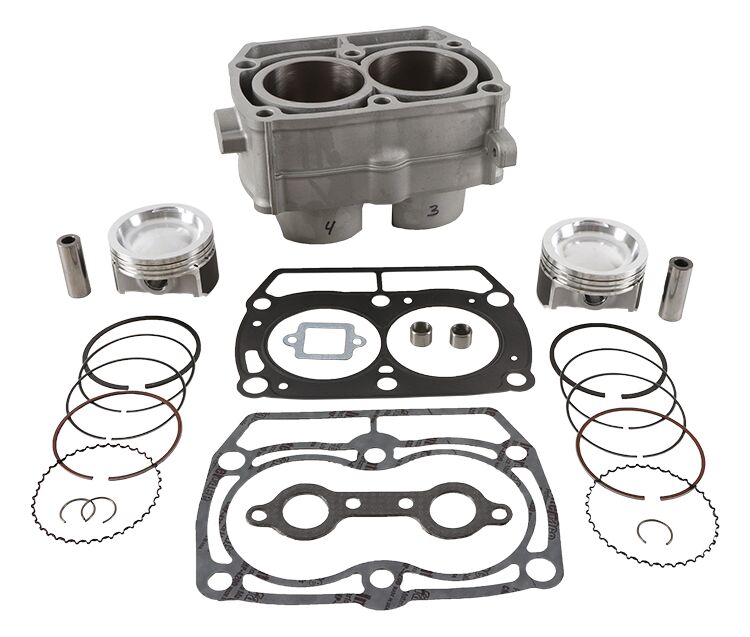

Cylinder Kit Ready-to-install, direct bolt-on cylinders require no re-plating and look virtually identical to the OEM cylinders Cylinder kit includes matched Vertex pistons to ensure longevity, performance and reduced engine noise Nickel Silicon Carbide plated for long life Kit comes complete with gaskets, cylinder, piston, rings, pin and clips Made in the USA Big bore cylinders do not require machine work. Kit Includes: • Cylinder • Piston Kits • Top-End Gasket Kit

Supplier reference: 09310616
Manufacturer reference: 60002-K05

Dimensions & specification
Riding Style
UTV
Cylinder Diameter Metric
80.00 mm
Color/Finish
Gray
Cylinder Diameter
80,00 mm
Displacement
760 cc
Compression Ratio Imperial
10.2:1
Units
Kit
Style
Standard
Engine Type
4-Cycle
Product Name
Cylinder Kit
Compression Ratio
10,2:1
Cylinder Bore Coating
Nickel-Silicon Carbide
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

All 49 supplier-listed applications. Match your complete model, year, position and any notes.

Complete supplier-listed applications for 60002-K05
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
POLARISRANGER 800 CREW 4X42011WH76/WY7653669ALL
POLARISRANGER 800 CREW 4X42011WH76/WY7653671EPSALL
POLARISRANGER 800 CREW 4X42012WH7667781ALL
POLARISRANGER 800 CREW 4X42012WH7667779EPSALL
POLARISRANGER 800 CREW 4X42013WH7679033ALL
POLARISRANGER 800 CREW 4X42013WH7E79035EPSALL
POLARISRANGER 800 CREW 4X42014WH7684461ALL
POLARISRANGER 800 EFI 4X42011TH76/TY7653665ALL
POLARISRANGER 800 EFI 4X42011TH76/TY7653667EPSALL
POLARISRANGER 800 EFI 4X42012TH7667765ALL
POLARISRANGER 800 EFI 4X42012TH7E67763EPSALL
POLARISRANGER 800 EFI 4X42013TH7679019ALL
POLARISRANGER 800 EFI 4X42013RH7679025MidsizeALL
POLARISRANGER 800 EFI 4X42014TH7684439ALL
POLARISRANGER 800 EFI 4X42014TH7E84441EPS LEALL
POLARISRANGER 800 EFI 4X42014RH7E84451EPS Midsize LEALL
POLARISRANGER 800 EFI 4X42014RH7684449MidsizeALL
POLARISRANGER 800 EFI 6x62011HR7653673ALL
POLARISRANGER 800 EFI 6x62012HR7667769ALL
POLARISRANGER 800 EFI 6x62013HR7679023ALL
POLARISRANGER 800 EFI 6x62014HR7684447ALL
POLARISRANGER 800 EFI 6x62015RAA7695851ALL
POLARISRANGER 800 EFI 6x62016RAA7695853ALL
POLARISRANGER 800 HD 4X42011TH7653663EPSALL
POLARISRANGER 800 HD 4X42012TH7667767EPSALL
POLARISRANGER RZR 800 4X42011VH7653675ALL
POLARISRANGER RZR 800 4X42011VH7653677EPS LEALL
POLARISRANGER RZR 800 4X42012VH7667787ALL
POLARISRANGER RZR 800 4X42012VH7667789EPS LEALL
POLARISRANGER RZR 800 4X42013VH7679041ALL
POLARISRANGER RZR 800 4X42013VH7E79043EPS LEALL
POLARISRANGER RZR 800 4X42014VH7684471ALL
POLARISRANGER RZR 800 4X42014VH7E84473EPS LEALL
POLARISRANGER RZR 800 4X42014VH7E84475EPS XCALL
POLARISSPORTSMAN 800 EFI 4X42011MH7653683ALL
POLARISSPORTSMAN 800 EFI 4X42012MH7667753ALL
POLARISSPORTSMAN 800 EFI 4X42012MH7684621ForestEUROPE
POLARISSPORTSMAN 800 EFI 4X42013MH7679073ALL
POLARISSPORTSMAN 800 EFI 4X42013MH7684619ForestEUROPE
POLARISSPORTSMAN 800 EFI 4X42014MH7684513ALL
POLARISSPORTSMAN 800 EFI 4X42014MH7684615ForestEUROPE
POLARISSPORTSMAN 800 EFI 6x62011CL7653685Big BossALL
POLARISSPORTSMAN 800 EFI 6x62012CF7667761Big BossALL
POLARISSPORTSMAN 800 EFI 6x62012CF7684623Big Boss ForestEUROPE
POLARISSPORTSMAN 800 EFI 6x62013CF7679071Big BossALL
POLARISSPORTSMAN 800 EFI 6x62013CF7684617Big Boss ForestEUROPE
POLARISSPORTSMAN 800 EFI 6x62014CF7684511Big BossALL
POLARISSPORTSMAN 800 EFI 6x62014CF7684613Big Boss ForestEUROPE
POLARISSPORTSMAN 800 EFI 6x6201596437ForestEUROPE
