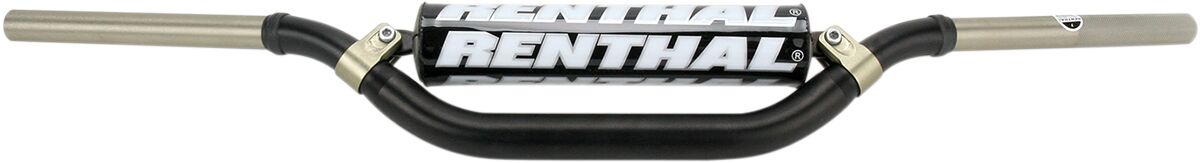

Twinwall® Handlebar KTM DUKE 640 E 2004-2006 / Yamaha WR 250 F 2001-2004 (AMERICA) / Yamaha WR 250 F 2001-2004 (EUROPE)
Our price £175.91
Price includes applicable VAT. Delivery calculated separately.
Choose the exact model and year to view its supplier application.
Product details
Twinwall® Handlebar Twinwall® construction consists of two aluminum alloy tubes, one within the other Outer tube is 7010-T73, which has extreme resistance to mechanical damage and is anodized to prevent corrosion Inner tube is ultra high strength 7010-T6 aluminum and is hard anodized to resist wear from twist grip and controls Rubber seals are used to cover the ends of the outer tube to keep water and cleaning fluids out Laser marked in the middle for accurate positioning Each handlebar includes an updated injection molded foam bar pad for better protection and greater durability Requires model-specific 1-1/8" bar mounts for bikes originally equipped with 7/8" bars.
Supplier reference: R99801BK
Manufacturer reference: 998-01-BK-02-185
Dimensions & specification
- Handlebar Diameter Metric
- 28.6 mm
- Type/Bend
- Reed/Windham| Twinwall
- Clamping Diameter
- 28,6 mm (1-1/8")
- Width Imperial
- 31-5/8"
- Product Name
- Handlebar
- Riding Style
- ATV| Off-Road
- Clamping Diameter Imperial
- 1-1/8"
- Color/Finish
- Anodized| Black
- Units
- Each
- Clamping Diameter Metric
- 28.6 mm
- Material
- 7010-T6 Aluminum
- Clamping Width
- 110 mm (4-5/16")
- Pullback/Sweep
- 56 mm (2-3/16")
- Width
- 80,3 cm (31-5/8")
- Handlebar Diameter Imperial
- 1-1/8"
- Controls Diameter Metric
- 22 mm
- Base Finish
- Anodized
- Pullback/Sweep Imperial
- 2-3/16"
- Handlebar Diameter
- 28,6 mm (1-1/8")
- Base Color
- Black
- Height Metric
- 98 mm
- Features
- Crossbar| Includes Pad| Knurled Clutch End
- Pullback/Sweep Metric
- 56 mm
- Rise
- 69 mm (2-23/32")
- Clamping Width Imperial
- 4-5/16"
- Width Metric
- 80.3 cm
- Height Imperial
- 3-7/8"
- Rise Imperial
- 2-23/32"
- Height
- 98 mm (3-7/8")
- Clamping Width Metric
- 110 mm
- Style
- Universal
- Controls Diameter Imperial
- 7/8"
- Rise Metric
- 69 mm
- Controls Diameter
- 22 mm (7/8")
Delivery & returns
UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.
The right part starts
with the right details.
Compare your model, year and exact variant, then check the number on your original part.
Vehicle fitment
All 11 supplier-listed applications. Match your complete model, year, position and any notes.
| Make | Model & variant | Year | Vehicle type | Vehicle ID | Market |
|---|---|---|---|---|---|
| KTM | DUKE 640 E | 2004 | KTM DK II | 17915 | ALL |
| KTM | DUKE 640 E | 2005 | KTM DK II | 17917 | ALL |
| KTM | DUKE 640 E | 2006 | KTM DK II | 17919 | ALL |
| YAMAHA | WR 250 F | 2001 | 5PH | 27299 | AMERICA |
| YAMAHA | WR 250 F | 2001 | CG | 49495 | EUROPE |
| YAMAHA | WR 250 F | 2002 | 5PH | 27301 | AMERICA |
| YAMAHA | WR 250 F | 2002 | CG | 49497 | EUROPE |
| YAMAHA | WR 250 F | 2003 | 5UM | 27303 | AMERICA |
| YAMAHA | WR 250 F | 2003 | CG | 49499 | EUROPE |
| YAMAHA | WR 250 F | 2004 | 5UM | 27305 | AMERICA |
| YAMAHA | WR 250 F | 2004 | CG | 49501 | EUROPE |
