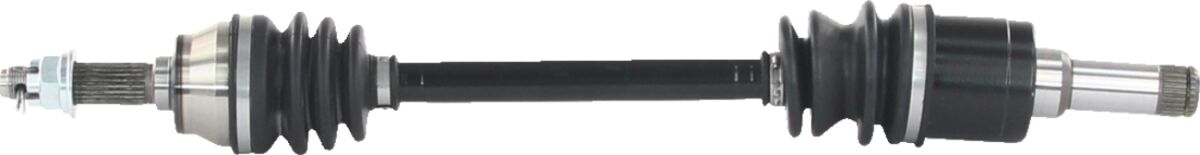

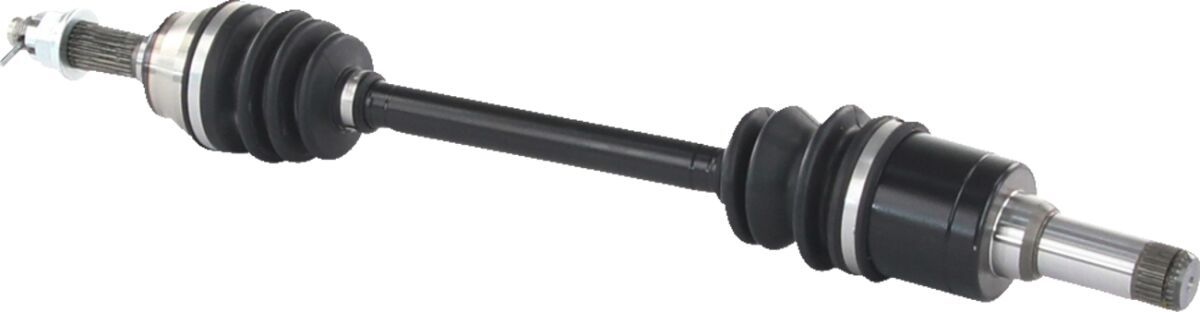

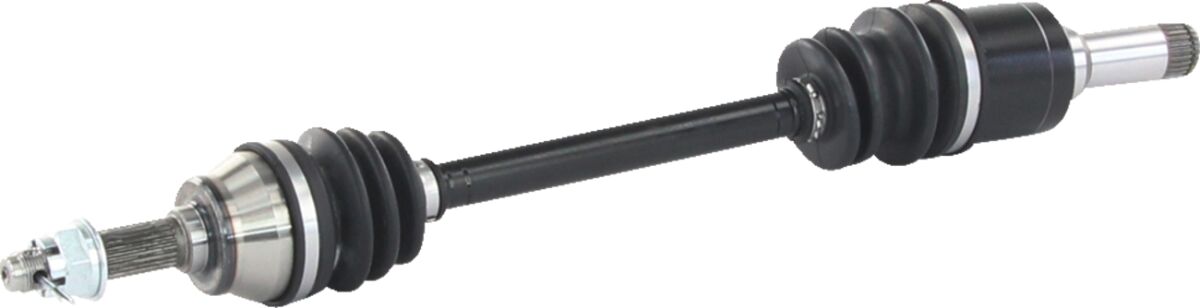

OEM Replacement Standard CV Axle Rear John Deere XUV 560 4X4 Gator 2016-2017 Rear John Deere XUV 560 4X4 Gator S4 2016 Rear John Deere XUV 560 E 4X4 Gator 2018-2024 Rear John Deere XUV 560 E 4X4 Gator S4 2021-2024
Check fitmentOur price £150.77
Price includes applicable VAT. Delivery calculated separately.
Choose your make, model and year to view its supplier application.
Product details
OEM Replacement Standard CV Axle Precision machined and heat treated solid chromoly steel center shaft, cages, races and ball bearings up to 35% stronger Highest quality, most reliable, and toughest constant velocity axles on the market Manufactured in a state-of-the-art ISO9001 and TS16949 certified factory Induction heat treated joints packed with high performance moly grease Designed to withstand the most rigorous conditions and terrain High-strength spring steel retaining clips (where required) Torture tested to failure to ensure maximum durability Exceed OEM quality in fit, form and function Secure stainless steel dust boot clamps Fully assembled for easy installation Precision rolled splines and threads
Supplier reference: 02143188
Manufacturer reference: JDR-7017
Dimensions & specification
- Mounting Position
- Rear Left| Rear Right
- Material
- Chromoly Steel
- Product Name
- Axle
- Base Finish
- Chrome
- Style
- OEM Replacement
- Units
- Kit
- Base Color
- Black
- Color/Finish
- Black| Chrome
- Type
- Complete| CV
- Duty
- Standard
- Riding Style
- UTV
Delivery & returns
UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.
The right part starts
with the right details.
Compare your model, year and exact variant, then check the number on your original part.
Vehicle fitment
14 supplier-listed vehicle applications.
| Make | Model & variant | Year | Position | Vehicle ID | Variant | Market |
|---|---|---|---|---|---|---|
| JOHN DEERE | XUV 560 4X4 | 2016 | Rear | 101797 | Gator | ALL |
| JOHN DEERE | XUV 560 4X4 | 2016 | Rear | 101799 | Gator S4 | ALL |
| JOHN DEERE | XUV 560 4X4 | 2017 | Rear | 117061 | Gator | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2018 | Rear | 117063 | Gator | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2019 | Rear | 117065 | Gator | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2020 | Rear | 122650 | Gator | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2021 | Rear | 145535 | Gator | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2021 | Rear | 145550 | Gator S4 | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2022 | Rear | 151673 | Gator | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2022 | Rear | 151676 | Gator S4 | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2023 | Rear | 158889 | Gator | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2023 | Rear | 158892 | Gator S4 | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2024 | Rear | 180104 | Gator | ALL |
| JOHN DEERE | XUV 560 E 4X4 | 2024 | Rear | 180109 | Gator S4 | ALL |
