Big Bore Cylinder Kit ARCTIC CAT (TEXTRON) 400 2X4 Kawasaki KFX KLX 400 R KLX 400 SR Suzuki DR-Z 400 DR-Z 400 E DR-Z 400 S DR-Z 400 SM LT-Z

Check fitment
CYLINDER WORKSPart no. 41001-K01

Our price £709.26

RRP £746.58Save £37.32 (5%)

Price includes applicable VAT. Delivery calculated separately.

Product details

Big Bore Cylinder Kit Cylinder kit includes matching Vertex pistons to ensure longevity, performance and reduced engine noise Cylinders have a nickel silicon carbide cylinder sleeve Look virtually identical to OEM cylinders Kit includes cylinder, pistons, rings, pin, clips and gaskets Made in the USA Cylinder does not require machine work (unless noted). Makes 462 cc when used with Hot Cams crankshaft. Kit Includes: • Cylinder • Piston Kit • Top-End Gasket Kit

Supplier reference: 09310135
Manufacturer reference: 41001-K01

Dimensions & specification
Compression Ratio
11,3:1
Bore - Oversize Metric
+4.00 mm
Units
Kit
Compression Ratio Imperial
11.3:1
Style
Big Bore
Displacement
434 cc
Color/Finish
Gray
Engine Type
4-Cycle
Cylinder Diameter
94,00 mm
Cylinder Diameter Metric
94.00 mm
Product Name
Cylinder Kit
Riding Style
ATV| Off-Road
Bore - Oversize
+4,00 mm
Material
Aluminum| Cast
Delivery & returns

UK standard delivery: 6–10 working days. In-stock parts dispatch within 2–3 working days.

The right part starts
with the right details.

Compare your model, year and exact variant, then check the number on your original part.

Vehicle fitment

103 supplier-listed vehicle applications.

Complete supplier-listed applications for 41001-K01
MakeModel & variantYearVehicle typeVehicle IDVariantMarket
ARCTIC CAT (TEXTRON)400 2X4200436753DVXALL
ARCTIC CAT (TEXTRON)400 2X4200536755DVXALL
ARCTIC CAT (TEXTRON)400 2X4200636757DVXALL
ARCTIC CAT (TEXTRON)400 2X4200636759DVX TSAMERICA
ARCTIC CAT (TEXTRON)400 2X4200736761DVXALL
ARCTIC CAT (TEXTRON)400 2X4200736763DVX TSAMERICA
ARCTIC CAT (TEXTRON)400 2X4200836765DVXALL
KAWASAKIKFX 400 2X42003KSF400A13705ALL
KAWASAKIKFX 400 2X42004KSF400A13703ALL
KAWASAKIKFX 400 2X42005KSF400A13707ALL
KAWASAKIKFX 400 2X42006KSF400A13709ALL
KAWASAKIKLX 400 R2003KLX400B13763AMERICA
KAWASAKIKLX 400 R2004KLX400B92279AMERICA
KAWASAKIKLX 400 SR2003KLX400A13761AMERICA
KAWASAKIKLX 400 SR2004KLX400A92281AMERICA
SUZUKIDR-Z 4002000DK42320755AMERICA
SUZUKIDR-Z 4002000BE111120713EUROPE
SUZUKIDR-Z 4002001DK42320757AMERICA
SUZUKIDR-Z 4002001BE111120717EUROPE
SUZUKIDR-Z 4002002DK42320759AMERICA
SUZUKIDR-Z 4002002BE111120723EUROPE
SUZUKIDR-Z 4002003DK42320761AMERICA
SUZUKIDR-Z 4002003BE111120733EUROPE
SUZUKIDR-Z 4002004DK42320763AMERICA
SUZUKIDR-Z 4002004BE111120741EUROPE
SUZUKIDR-Z 4002005DK42320765AMERICA
SUZUKIDR-Z 400 E2000DK43320767AMERICA
SUZUKIDR-Z 400 E2000BF20725EUROPE
SUZUKIDR-Z 400 E2001DK43320769AMERICA
SUZUKIDR-Z 400 E2001BF20727EUROPE
SUZUKIDR-Z 400 E2002DK43320771AMERICA
SUZUKIDR-Z 400 E2002BF20729EUROPE
SUZUKIDR-Z 400 E2003DK43320773AMERICA
SUZUKIDR-Z 400 E2003BF20735EUROPE
SUZUKIDR-Z 400 E2004DK43320775AMERICA
SUZUKIDR-Z 400 E2004BF20739EUROPE
SUZUKIDR-Z 400 E2005DK43320777AMERICA
SUZUKIDR-Z 400 E2005BF20747EUROPE
SUZUKIDR-Z 400 E2006DK43320779AMERICA
SUZUKIDR-Z 400 E2007DK43320781AMERICA
SUZUKIDR-Z 400 S2000SK43A20783AMERICA
SUZUKIDR-Z 400 S2000WVBC20715EUROPE
SUZUKIDR-Z 400 S2001SK43A20785AMERICA
SUZUKIDR-Z 400 S2001WVBC20719EUROPE
SUZUKIDR-Z 400 S2002SK43A20787AMERICA
SUZUKIDR-Z 400 S2002WVBC20721EUROPE
SUZUKIDR-Z 400 S2003SK43A20789AMERICA
SUZUKIDR-Z 400 S2003WVBC20731EUROPE
SUZUKIDR-Z 400 S2004SK43A20791AMERICA
SUZUKIDR-Z 400 S2004WVBC20737EUROPE
SUZUKIDR-Z 400 S2005SK43A20793AMERICA
SUZUKIDR-Z 400 S2005WVBC20745EUROPE
SUZUKIDR-Z 400 S2006SK43A20795AMERICA
SUZUKIDR-Z 400 S2006WVBC20751EUROPE
SUZUKIDR-Z 400 S2007SK43A20797AMERICA
SUZUKIDR-Z 400 S2008SK43A20799AMERICA
SUZUKIDR-Z 400 S2009SK43A20801AMERICA
SUZUKIDR-Z 400 S2010SK43A55481AMERICA
SUZUKIDR-Z 400 S2011SK43A55483AMERICA
SUZUKIDR-Z 400 S2012SK43A68287AMERICA
SUZUKIDR-Z 400 S2013SK43A84911AMERICA
SUZUKIDR-Z 400 S2014SK43A84913AMERICA
SUZUKIDR-Z 400 S2015SK43A91073AMERICA
SUZUKIDR-Z 400 S2016SK43A94053AMERICA
SUZUKIDR-Z 400 S2017SK43A100845AMERICA
SUZUKIDR-Z 400 S2018SK43A105035AMERICA
SUZUKIDR-Z 400 SM2005SK44A20803AMERICA
SUZUKIDR-Z 400 SM2005WVB820743EUROPE
SUZUKIDR-Z 400 SM2006SK44A20805AMERICA
SUZUKIDR-Z 400 SM2006WVB820749EUROPE
SUZUKIDR-Z 400 SM2007SK44A20807AMERICA
SUZUKIDR-Z 400 SM2007WVB820753EUROPE
SUZUKIDR-Z 400 SM2008SK44A20809AMERICA
SUZUKIDR-Z 400 SM2008WVB857839EUROPE
SUZUKIDR-Z 400 SM2009SK44A20811AMERICA
SUZUKIDR-Z 400 SM2010SK44A55485AMERICA
SUZUKIDR-Z 400 SM2011SK44A55487AMERICA
SUZUKIDR-Z 400 SM2012SK44A70711AMERICA
SUZUKIDR-Z 400 SM2013SK44A81777AMERICA
SUZUKIDR-Z 400 SM2014SK44A84915AMERICA
SUZUKIDR-Z 400 SM2015SK44A91075AMERICA
SUZUKIDR-Z 400 SM2016SK44A94055AMERICA
SUZUKIDR-Z 400 SM2017SK44A100843AMERICA
SUZUKIDR-Z 400 SM2018SK44A105037AMERICA
SUZUKILT-Z 400 2X42003AK47A20971QuadsportALL
SUZUKILT-Z 400 2X42004AK47A20969QuadsportALL
SUZUKILT-Z 400 2X42005AK47A20973QuadsportALL
SUZUKILT-Z 400 2X42006AK47A20975QuadsportALL
SUZUKILT-Z 400 2X42007AK47A20977QuadsportALL
SUZUKILT-Z 400 2X42008AK47A20979QuadsportALL
SUZUKILT-Z 400 2X42009AK4AA20981QuadsportALL
SUZUKILT-Z 400 2X42010AK4AA20983QuadsportALL
SUZUKILT-Z 400 2X42011AK4AA55501QuadsportALL
SUZUKILT-Z 400 2X42012AK4AA70695QuadsportALL
SUZUKILT-Z 400 2X42013AK4AA81749QuadsportALL
SUZUKILT-Z 400 2X42014AK4AA86743QuadsportALL
SUZUKILT-Z 400 Z 2x42004AK47A55293Quadsport LTDALL
SUZUKILT-Z 400 Z 2x42005AK47A55295Quadsport LTDALL
SUZUKILT-Z 400 Z 2x42006AK47A55297Quadsport LTDALL
SUZUKILT-Z 400 Z 2x42007AK47A55299Quadsport LTDALL
SUZUKILT-Z 400 Z 2x42008AK47A55301Quadsport LTDALL
SUZUKILT-Z 400 Z 2x42009AK4AA55303Quadsport LTDALL
SUZUKILT-Z 400 Z 2x42012AK4AA67931Quadsport LTDALL

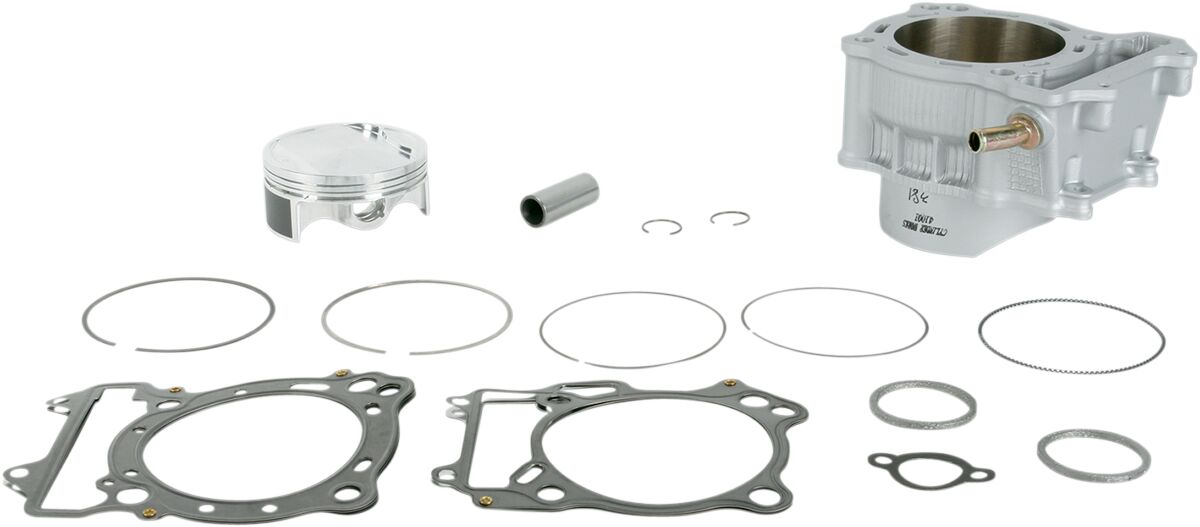

Big Bore Cylinder Kit ARCTIC CAT (TEXTRON) 400 2X4 Kawasaki KFX KLX 400 R KLX 400 SR Suzuki DR-Z 400 DR-Z 400 E DR-Z 400 S DR-Z 400 SM LT-Z
